• Designed and manufactured for drying automotive parts
• Maximum temperature up to 200 °C
• Inner dimension (approx.) : Width 2165 mm x Depth 1200 mm x Height 1600 mm
• SUS 304 Stainless Steel Interior
• Mild steel exterior finished by Jotun protective paint
• Industrial Rockwool insulation
• Air tight swing double leaf door sealed by high temperature gasket
• Manual adjustable Fresh air inlet and exhaust dumper
• Forced convection heating system with:
  • Hot air re-circulating system
  • Combination air flow, from both side oven wall return to top wall

• Oven wall mounting type electrical control panel
• Microprocessor based digital temperature controller
• Overheat temperature protection system controlled by:
  • Heat source temperature limiter
  • Electrical interlock system between circulation blower & heater power switching control

• Industrial process thermocouple sensor
• Full proportional heating control by SCR Power Regulator
• Optional: Transfer Trolley & Workpiece trolley
• 1 Year Spare part & services Warranty (Normal Operation)

• Used for Drying Aeroplane Metal Parts
• Maximum Working Temperature Up to 260 °C (Operating Temperature : 200 °C)
• Build to meet AMS 2750E Standard Requirement
• Inner Dimension (Approx.) : Width 950 mm x Depth 1100 mm x Height 1500 mm
• SUS 304 Stainless Steel Interior
• Mild steel exterior finished by Jotun protective paint
• Air tight single leaf manual operated swing door sealed by heat resistant gasket
• Forced convection with :
  • Hot Air re-circulating system
  • Horizontal air flow, side to side blowing direction
• Manual fresh air inlet and exhaust outlet swing dumper
• Oven wall mounting type electrical control panel
• Microprocessor based digital indicating temperature controller that meet AMS 2750E requirement (Accuracy: ±1,1 °C)
• Equipped with Overheat protection system by chamber temperature limiter & heater overheat protector controller
• Industrial metal sheathed thermocouple type N completed with UKAS Calibration Certificate to AMS 2750E
• Full proportional heating control by SCR power regulator
• 1 Year Spare part & services Warranty (Normal Operation)

• Maximum operating Temperature up to 250 °C
• Volume (Capacity) : ± 3200 Litre
• Inner Dimension (Approx.) : Width. 1900 mm x Depth. 1000 mm x Height 1700 mm
• SUS 304 Stainless Steel Interior
• Mild Steel exterior finished by Jotun protective paint
• Industrial rockwool insulation
• Air tight double leaf manual swing door
• Manual adjustable air inlet and exhaust dumper
• Forced convection system with :
  • Hot air re-circulating system
  • Horizontal air flow, side to side blowing direction return to upper ceiling

• Oven wall mounting type electrical control panel
• Microprocessor based digital temperature controller
• Overheat temperature protection system controlled by :
  • Chamber temperature limiter
  • Hi-limit alarm of chamber temperature control
  • Electrical interlock system between circulation blower & heater power switching control

• Digital timing system for soaking/holding process
• Industrial process thermocouple Type K temperature sensor
• Full proportional heating control by SCR Power Regulator
• Optional :  SUS 304 Trolley & Workpiece Tray
• Optional :  Paperless thermorecorder
• 1 year Sparepart & services Warranty (Normal Operation)

This up to 325 °C forced convection circulation oven (CRO-01) was designed and manufactured for the textile industry, specifically with synthetic fiber production in mind.

Oven Construction

• Maximum operating temperature up to 700 °C ( Normal Operating Range: 100-700°C )
• Inner dimension: Width 450 mm x Depth 1250 mm x Height 250 mm
• Capability for Loading: 10 Tray x 1 Pcs = 10 Work Pieces/Section
• SUS 304 stainless steel interior, with mild steel plate exterior finished by heat-resistant aluminium paint.
• Electrical heater as a heat source
• Forced convection with :
  • Hot air re-circulating system
  • Horizontal airflow with side-to-side blowing direction
  • Hi-temperature circulation blower
• Remote floor standing type electrical control panel
• Industrial process thermocouple type K with stainless steel protection tube & aluminium protection head

Electrical Features

• Full proportional heating control by SCR power regulator to enable high accuracy, fast response, and uniformity while extending heater life
• Thermo controller with chamber temperature control, digital temperature controller, PID action control, and SCR output thermocouple

Safety

• Overheat protection
• Full electrical interlock to shut off heating power if circulation blower is interrupted
• Easy-to-see on/off selector switch c/w lamp to inform the status of the blower and heating element

Warranty

• 1-year spare parts and services warranty (normal operation)

• Ideal for laboratory use
• Maximum operating temperature up to 1200°C
• Inner dimension :
  • BF-02/15 : Width 240 mm x Depth 270 mm x Height 240 mm (Volume : 15 Litre)
  • BF-02/27 : Width 300 mm x Depth 300 mm x Height 300 mm (Volume : 27 Litre)
• Hi-grade insulating fire bricks interior backed up by ceramic fibre board & blanket
• Manual adjustable heat resistant alloy outlet
• Single leaf air tight swing door secured by manual steer
• Free radiating by electric heaters at left, right & rear side of furnace wall
• Furnace built-in type electrical control panel
• Microprocessor based digital indicating temperature controller
• Overheat protection system
• Digital timing system for soaking / holding process
• Industrial process thermocouple sensor
• On / off heating control by magnetic contactor (Optional: Full proportional heating control by SCR power regulator)

Spare Parts Warranty : 1 Year (Normal Operation)

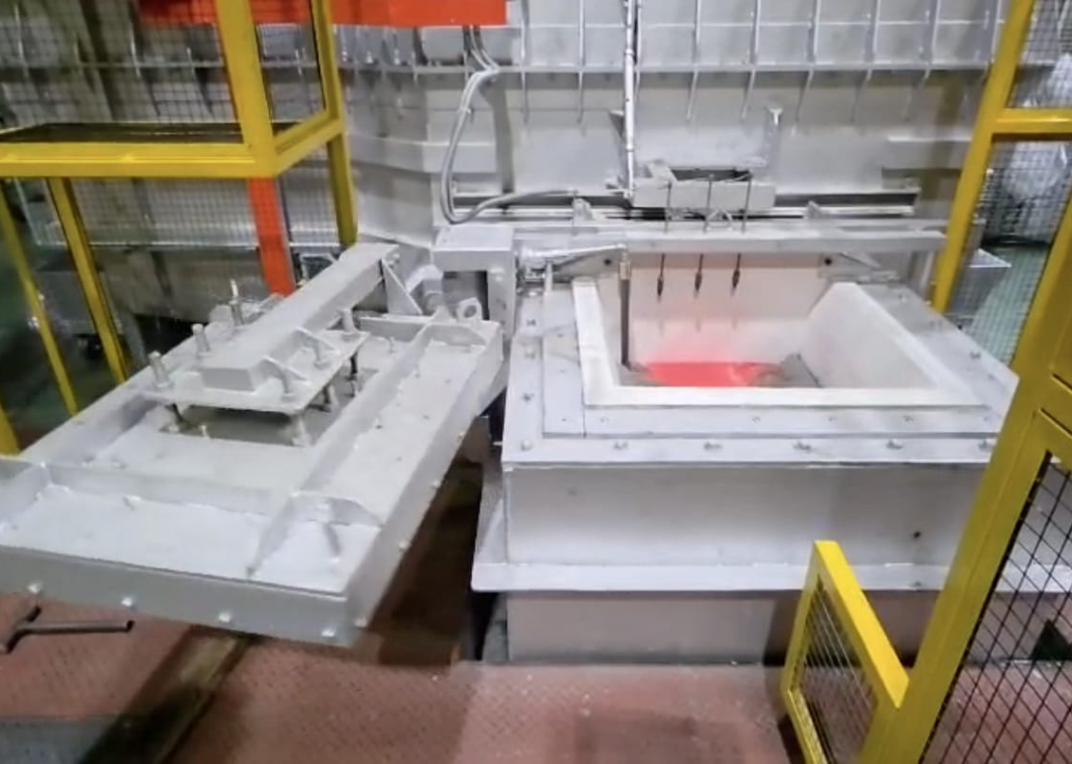

• Suitable for Gravity Casting & Low Pressure Die Casting Machine
• Melting Rate : 500 Kg/Hour, Holding Rate : 1200 Kg
• Overall Dimension (Approx.) : Width 4125 mm x Depth 4605 mm x Height 3965/5965 mm
• Mild steel outer shell finished by heat resistant paint
• Lining with alumunium non melting castable (Hot face) backed up by multi layer insulation material to ensure the low heat loss & low power consumption
• Melting & holding chamber heat source by gas burner Ex. Eclipse (USA)
• Steel structure charging tower equipped with bucket elevator & electrical charging hoist
• Automatic charging door actuated by gear motor or pneumatic cylinder (Optional)
• Moveable charging bucket (Optional)
• Manual swing type sledging & fluxing door secured by manual steer
• Remote floor standing type electrical control panel
• PLC wired control circuit
• Microprocessor based digital indicating temperature controller on melting exhaust, holding chamber & molten temperature control
• Overheat protection system
• Full protection system on charging & burner part
• Special industrial process thermocouple on melting exhaust, holding chamber & molten sensor
• Installed with molten level detector
• Remote burning gas train
• Digital gas flow meter (Optional)

• Used for heating city water
• Maximum operating temperature up to 100 °C (Working Temperature : 96 °C (Boiling Water) )
• Single stage electrical inline heating system
• SUS 304 Stainless Steel interior and heater shell
• Insulated with calcium silica block and SUS 403 sheet
• Vertical Flow Multi stage centrifugal hot circulation pomp
• Cast Iron water inlet/outlet gate valve
• Industrial process thermocouple sensor type K
• Remote floor standing type electrical control panel
• On/off heating control by magnetic contactor

This hot water heating system (HWHS-02) was designed & manufactured for hot water supply in the automotive industry, requiring an operating temperature of 60 °C with ± 4 bar of delivery pressure.

• Storage capacity (Ltr): 1000 Ltr (Effective)
• Operating Temperature: up to 60 °C
• Delivery Pressure: ± 4 Bar
• Overall Dimension: Approx. Dia. 864 mm  x Height 2650 mm
• SUS 304 stainless steel plate interior tank insulated by industrial Rockwool
• SUS 304 stainless steel heater vessel insulated by calcium silica block
• Remote floor standing type electrical control panel

Heating System

• Heating system by single-stage electrical inline heater
• Industrial process thermocouple with stainless steel protection tube & aluminium protection head
• Equipped with a water tank digital indicating temperature controller
• Equipped with heater outlet temperature controller

Safety

• Safety relief valve
• Vessel pressure gauge
• Vessel drain valve
• Waterflow detector port
• Hot water inlet/outlet thermocouple port
• Easy to see push button with a pilot lamp to control and inform all the status of system equipment condition
• Interlock system to shut off heater pump and transfer pump in abnormal conditions
• Emergency push button
• Water level control (optional)

Warranty

• 1-year spare parts warranty (normal operation)
