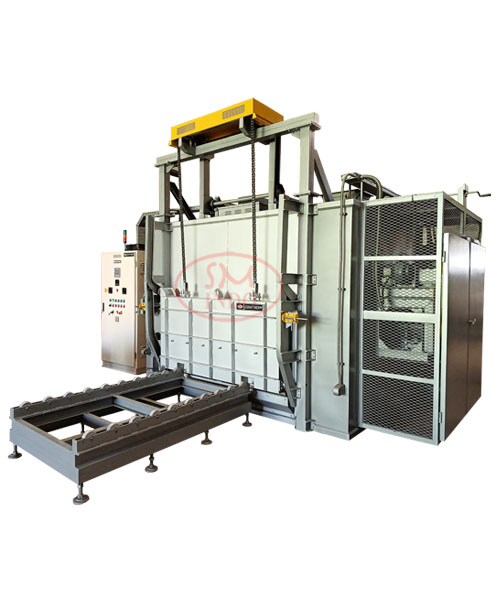

Our Bogie-Hearth 700 °C high-temperature oven (BH-HTO-05) is designed for stress relieving and ageing duties in a production capacity. Designed with ease of production and safety in mind, this forced convection electrical oven was designed to enable high-temperature uniformity with multiple safety features.

Oven Construction

• Maximum operating temperature up to 700 °C ( Normal Operating Range: 100-700°C )
• Inner dimension: Width 1600 mm x Depth 1600 mm x Height 800 mm
• SUS 304 stainless steel interior, with mild steel plate exterior finished by heat-resistant aluminium paint.
• Ceramic fibre board with industrial rock wool insulation
• Motorized lifting-up oven door
• Electrical heater as heat source
• Forced convection with :
  • Hot air re-circulating system
  • Horizontal airflow with side-to-side blowing direction
• Remote floor standing type electrical control panel

Work Load Handling Equipment

• The oven will be equipped with a manual load trolley/rack.

Electrical Features

• One-touch operation system
• Microprocessor-based digital indicating temperature controller
• Digital timing system for the soaking/holding process
• Industrial process thermocouple sensor
• Full proportional heating control by SCR power regulator to enable high accuracy, fast response, and uniformity while extending heater life.
• 8-points paperless thermo recorder

Safety

• Overheat protection
• Overmoving (wrong step) precaution system on over door
• Emergency push button to enable full electrical interlock wiring between the door, heating element, and circulation blower
• 3-stage tower lamp for oven condition indication

Warranty

• 1-year spare parts and services warranty (normal operation)

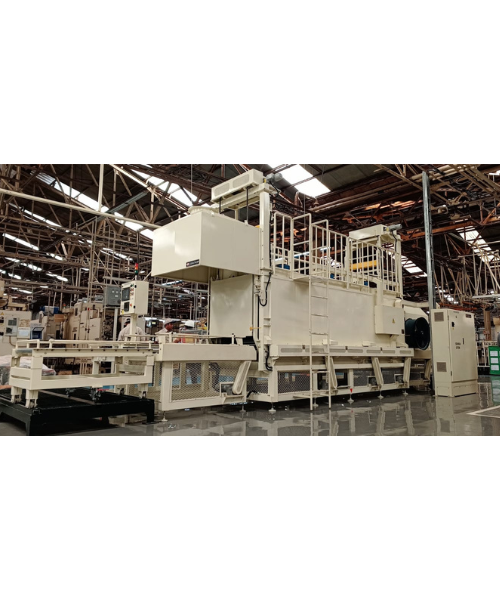

Our SUHATHERM Semi-Continuous,Three Zone Tempering Oven (SC-TZ-TO) is designed for low temperature tempering heat treatment of various automotive components. This oven features an automatic motorized conveyor complete with one-touch operation system which moves jig from loading, 3-zone heating chamber, forced cooling (with axial fan), and unloading section.

This oven features multiple safety features and sensors. Operational status can be viewed at all times through built-in human machine interface (HMI). Please refer to the below specifications for details (note specifications acts as reference only and may change depending on order configuration):

1. Operating Temperature : 150 ~ 200 °C*
2. Tempering Time: 160 minutes*
3. Cycle Time: ± 53.5 minute/tray

*Parameters Customizable According to Client Needs

Oven Dimension

1. Overall: W. 2900 x L. 7900 x H. 3800 mm
2. Heating Chamber: W. 1000 x L. 4190 x H. 800 mm
3. Workpiece Tray (Optional & Customizable Based on Products)

Heating System:

1. Hot Air Agitating System with Non-Radiating Finned Industrial Heaters
2. Total 105.3 kW
3. Full Proportional Heating Control with SCR Power Regulator, PWM System, Enabling Better Uniformity & Extended Heater Life
3. c/w Agitating Axial Fan (1 Nos per Heating Zone)

Forced Cooling

1. 2 Nos 0.55 kW Axial Fan Placed on Forced Cooling Section

Electrical Control

1. Human Machine Interface (HMI) & PLC Control System - Controls & Displays Operational Status at All Times.
2. Thermocontrols Ex. Japan
3. Optional Multi-Channel Paperless Recorder

Safety

1. Multi-layer Overheat Protection by PID Alarm & Temperature Control Limiter
2. Photo Sensor & Limit Switch
3. Auto-Locking Doors, Pinch Point Protection
4. Multiple Interlocks to Ensure Operational Procedure is Followed
5. MCCB & Fast Acting Fuse for Electrical Safety

Other Equipments & Features

1. Daisha (Standing Platform) & Jig Platform as Required by User

*Note temperature, cycle time, dimension, & features can be customized according to client needs.

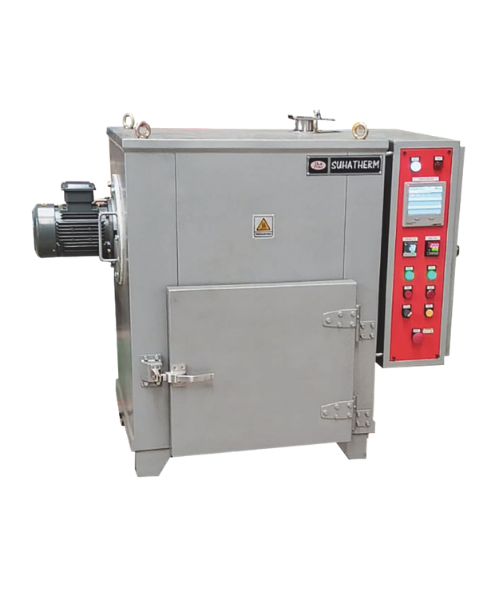

SUHATHERM Bench Oven BO-03/53 is a multipurpose - heavy duty 53 ltr forced convection benchtop oven designed for durability test of various components. This oven features maximum operating temperature of 300°C, with full proportional heating control for better heater control and extended durability.

This oven is available in 21 ltr & 53 ltr sizings, and features an optional paperless thermorecorder.

• Maximum operating temperature up to 300 °C
• Inner dimension: W. 400 mm x D. 400 mm x H. 335 mm (53 Ltr)
• Outer dimension (Approx.): W. 1335 mm x D. 770 mm x H. 1085 mm
• SUS 304 stainless steel interior
• Mild steel exterior finished by protective paint
• Forced convection with:
  • Hot air recirculating heating system
  • Electric heater elements
  • Horizontal flow and side to side blowing direction
• Manual adjustable air inlet & exhaust outlet damper
• Microprocessor based digital indicating temperature controller c/w features:
  • Programmable up to 64 heating steps
  • Digital display screen for set point (SV) and actual (PV) temperature
  • PID and Fuzzy PID control with auto-tuning
• Overheat protection system
• Digital timing system for soaking/holding process
• Industrial process thermocouple sensor type K
• Full proportional heating control by SCR power regulator (thyristor)

*Optional 4-channel paperless recorder (please specify at time of order).
*1-year spareparts warranty*

*Terms & Conditions Apply

Please contact us at cs@smindo.co.id for custom sizings & detailed technical specifications prior to order.

Our heat treatment furnace 1200 °C with manual swing door (BHF-MSD) is designed for annealing & normalizing the metal core of the electrical transformer. Designed with ease of production, efficiency, and safety in mind, this electric heater-based bogie-hearth furnace was designed to enable energy efficiency and ease of use. Made in Indonesia, this furnace was designed for a reputed oil & gas company.

Furnace Construction

• Maximum operating temperature up to 1200°C (Working : 800°C)
• Inner dimension: Width 1000 mm x Depth 1000 mm x Height 1000 mm
• Bogie dimension: Width 1080 mm x Depth 1250 mm x Height 400 mm
• Hi-grade insulating fire bricks interior backed up by ceramic heater fibre board & blanket
• Motorized furnace bogie
• Single-leaf manual swing door
• Pneumatic actuated exhaust dumper
• Free heat radiating system by electric heaters from both sides of the furnace wall
• Remote floor standing type electrical control panel

Electrical Features

• Microprocessor-based digital indicating temperature controller
• Overheat protection system
• Digital timing system for the soaking/holding process
• Industrial process thermocouple sensor
• Full proportional heating control by SCR power regulator to enable better uniformity while maintaining efficiency and extending heater life
• Working pallet (Optional)

Safety

• Overheat protection system

Warranty

• 1-year spare parts warranty (normal operation)

• Suitable for gravity casting & low pressure die casting machine
• Melting rate : 750 kg/hour, Holding capacity : 2000 Kg
• Overall dimension : Width 5050 mm x Depth 5380 mm x Height 3750/7108 mm
• Mild steel outer shell finished by heat resistant paint
• Lining with aluminium non melting cast-able (Hot face) backed up by multi-layer insulation material to ensure the low heat loss & low power consumption
• Melting & holding chamber heat source by gas burner Ex: Eclipse (USA)
• Steel structure charging tower equipped with bucket elevator & electric charging hoist
• Automatic charging door actuated by gear motor or pneumatic cylinder (Optional)
• Optional moveable charging bucket
• Manual swing type sledging & fluxing door
• Remote floor standing type electrical control panel
• PLC wired control circuit
• Microprocessor based digital indicating temperature controller on melting exhaust, holding chamber & molten temperature control
• Overheat protection system
• Full protection system on charging & burner part
• Special industrial process thermocouple on melting exhaust, holding chamber & molten sensor
• Equipped with molten level detector
• Remote burning gas train
• Digital gas flow meter (Optional)
• Manual or automatic tap out unit actuated by pneumatic air cylinder (Optional)

Spare Parts Warranty : 1 Year (Normal Operation)
