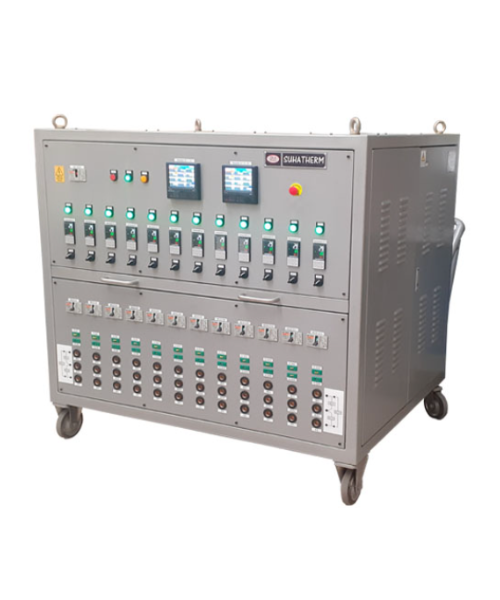

Our 70 KVA Self-Contained Channel PWHT Machine, AKA Post Weld Heat Treatment Machine/Heat Treatment Center (HTC-70K-12) is Designed to Control Various Heating Elements Necessary in PWHT of Various Products.
- Brand: Suhatherm
- Origin: Indonesia
- Primary Input
- Winding: Connected in Delta
- Input Voltage: 3 Phase, 380/415/440V, 70 KVA
- Input Frequency: 50 Hz
- Input Protection: 3 Pole, 125A, 50/25 kA Breaking Capacity MCB with Shunt Trip Link to Primary Core Winding
- Secondary Output
- Winding: Connected in Star
- Voltage: 32.5V – 0V – 32.5V (For 30V & 60 V Heating Element Operation)
-
- Output Channel: 12 Channels
- Maximum Load/Output Channel: 2 x 60V, 2.7 kW Heating Element (2 x 2.7 kW = 5.4 kW)
- Maximum Current/Output Channel: 90A
- Output Protection: 3 Pole, 125A 30/15 kA Breaking Capacity on Each Output Channel
- Output Control
- 12 Nos Programmable Temperature Controller
- Programmable to 8 Heating Patterns with 8 Heating Steps (Ramp/Soak) on Each Pattern (Advantage 8 on Each Pattern)
- PID, Fuzzy PID, Self-Tuning, & Auto-Tuning Control
- Indication Accuracy: ±0.3%, ±1 Digit
- Switching
- 12 Number of 200A Rating Magnetic Contactor 110/220 VAC Coil
- (Optional) Switching by SCR Power Regulator
- Auxiliary Input: Three 220V, 50 Hz, 5A Fused Output Sockets
- Indicator: 12 Number 220V Neon Pilot Lamp Channel Indicator
- Overheat Protection
- Hi-limit Temperature Alarm of Programming Controller & Thermocouple Break of Individual Channel to Switch Off the Power of Related Channel Heaters
- Thermorecorder
- 2 x 12 Channel Paperless Thermorecorder
- Construction
- Robust Steel Sheet Case c/w Wheels
1-Year Spareparts & Services Warranty*
*Terms & Conditions Apply
