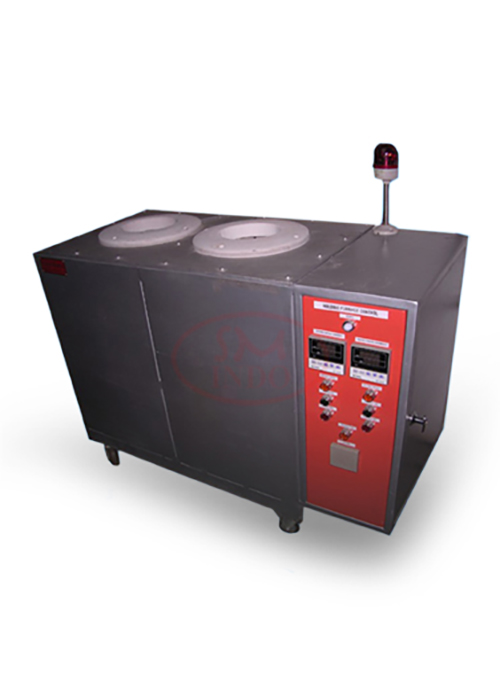

• Suitable for dry preheating source & preheating ceramic stalk of LPDC (Low Pressure Die Casting) machine
• Maximum operating temperature up to 1000°C
• 2 Nos Heating chamber
• Inner dimension : Dia. 160 mm x Depth 600 mm
• Free radiating heating system by electric heater
• Built-in oven type electrical control panel
• Microprocessor based digital indicating temperature controller
• Overheat protection system
• Digital timing system for soaking / holding temperature inside chamber
• Industrial process thermocouple sensor
• Full proportional heating control by SCR power regulator

Spare Parts Warranty : 1 Year (Normal Operation)

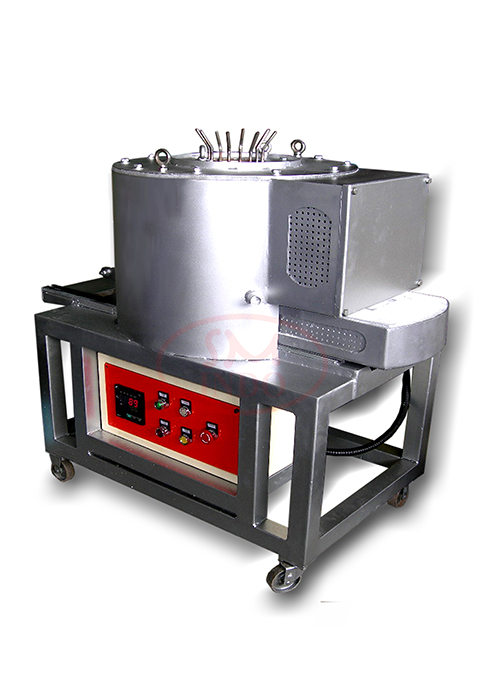

• Designed & manufactured for wheel ring expansion
• Maximum operating temperature up to 700°C
• Inner dimension : Dia. 240 mm x Depth 425 mm
• Customized moveable furnace with sliding table at bottom side for unloading work piece
• Hi-grade insulating fire bricks interior backed up by ceramic fibre board & blanket
• Free radiating heating system by electric heaters
• Built-in (Under furnace chamber) mounting type electrical control panel
• Microprocessor based digital indicating temperature controller
• Overheat protection system
• Industrial process thermocouple sensor
• Full proportional heating control by SCR power regulator
• Work piece jig (optional)

Spare Parts Warranty : 1 Year (Normal Operation)

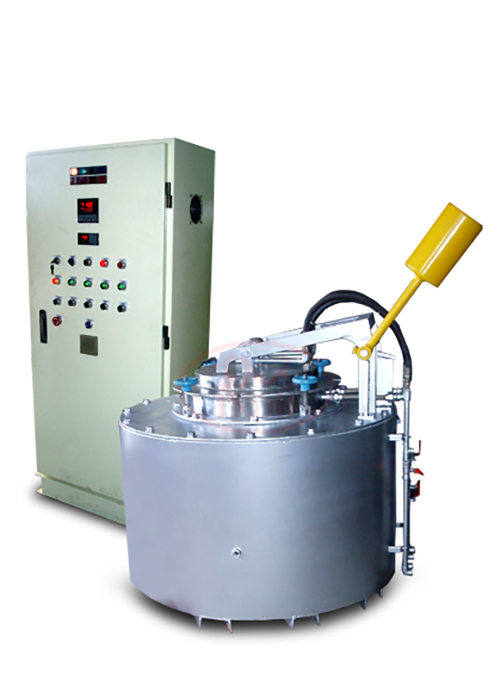

• Designed & manufactured for bright annealing cooper & stainless steel part
• Maximum operating temperature up to 1000°C
• Vacuum chamber dimension : Width 400 mm x Depth 430 mm
• Hi-grade insulating bricks interior backed up by ceramic fibre board & blanket
• Vacuum tight door secured by manual steer
• Free radiating heating system by electric heaters
• Remote floor standing type electrical control panel
• 2 pattern programmable digital indicating temperature controller
• Overheat protection system
• Industrial process thermocouple sensor
• Full proportional heating control by SCR power regulator

Spare Parts Warranty : 1 Year (Normal Operation)

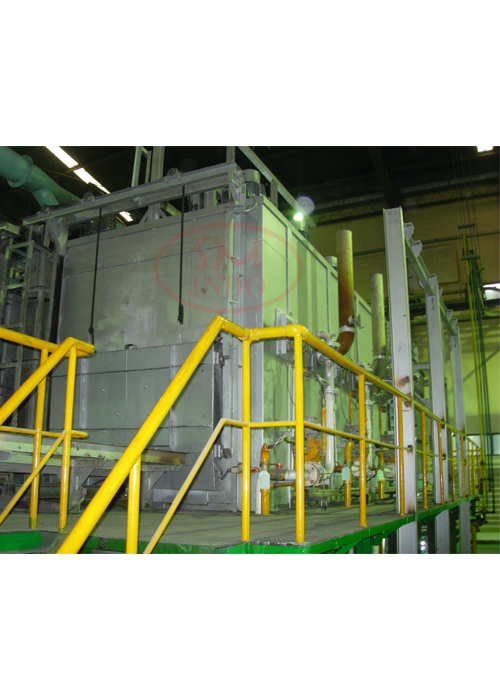

• Designed & manufactured for T6 solution furnace
• Maximum operating temperature up to 600°C (Working : 450-550°C)
• Inner dimension : Width 1485 mm x Depth 4400 mm x Height 965 mm
• Hi-insulated with high temperature fibre insulation material
• Gas burner heating source
• Forced convection with :
  • Hot air re-circulating system
  • Combination air flow from both side of furnace wall return to top
  • 3 Zone heating control
• Remote floor standing type electrical control panel
• Microprocessor based digital indicating temperature controller
• Overheat protection system
• Digital timing system for soaking / holding process
• Industrial process thermocouple sensor
• Full proportional firing control by modutrol

Spare Parts Warranty : 1 Year (Normal Operation)

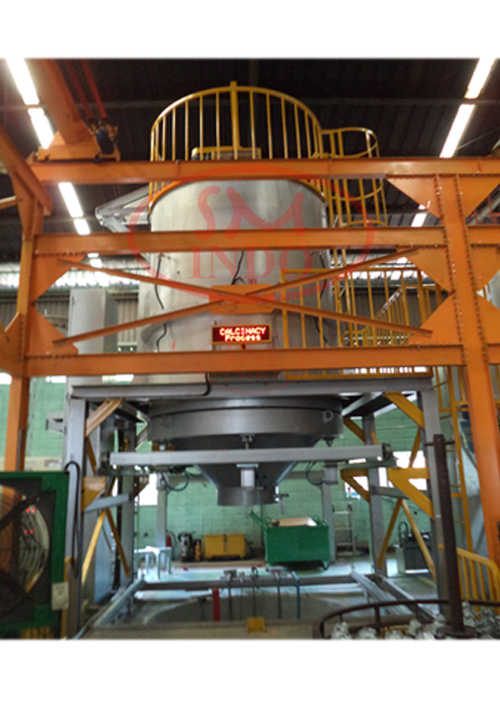

• Designed & manufactured for 3 different types heat treatment (Calcination, solution & aging process)
• Maximum temperature up to 600°C with :
  • Calcination Process        : 450°C
  • T6 / Solution Process     : 528°C
  • Aging Process                 : 180°C
• Inner dimension : Dia. 1400 mm x Height 1900 mm
• Insulated with high temperature fibre insulation material
• Motorized furnace cap / funnel
• Motorized bucket truck
• Hydraulic work piece bucket lifter
• Forced convection with :
  • Hot air re-circulating system
  • Vertical air flow from bottom wall return to top wall
  • 2 Nos hot air circulation blower
• Remote floor standing type electrical control panel
• PLC (Programmable Logic Control) control circuit
• Microprocessor based digital indicating temperature controller
• Overheat protection system
• Digital timing system for soaking / holding for each process
• Industrial process type K temperature sensor
• Full proportional heating control by SCR power regulator
• 10 channel paperless thermo recorder.

Spare Parts Warranty : 1 Year (Normal Operation)

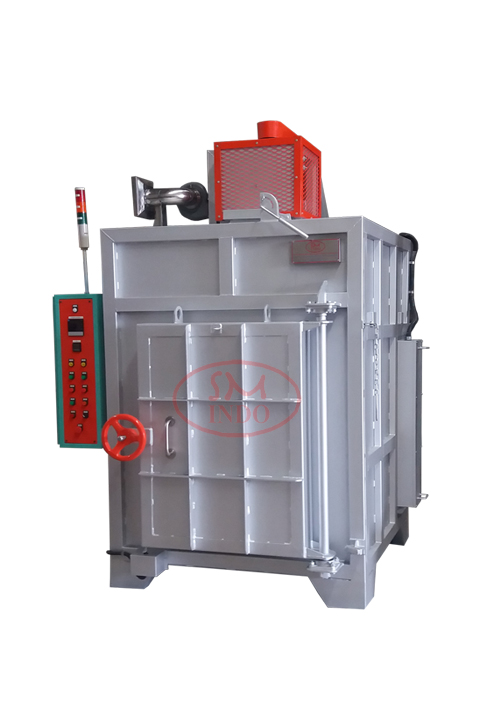

the SUHATHERM Sintering Furnace (SF-01) is designed and manufactured for sintering process. This heavy-duty furnace features a maximum operating temperature up to 800 °C, and designed for continuous running (24/7) at 600 °C.

• Designed & manufactured for sintering process
• Maximum operating temperature: 800 °C
• Working temperature: 600 °C (Designed for continuous running 24/7)
• Inner Dimension
  • : W. 560 mm x D. 950 mm x H. 850 mm (Approx. effective chamber area)
• SUS 310 stainless steel plate exterior
• Hi-grade insulating fire bricks interior backed up by ceramic fibre board & insulating brick
• Air-tight single leaf manual swing door-type
• Forced convection heating system with:
  • Hot air re-circulating system
  • Dual air flow from both-sides of furnace chamber and upward throught the workpiece tray
• Equipped with extra-high temperature service centrifugal blower complete with turbo-capacity cooling fan blower
• Oven wall-mounted type electrical control panel
• Digital Indicating PID temperature controller with SCR power regulator for improved temperature stability & heater lifetime
• (Optional) HMI touschreen operating system
  • Elementary real-time process monitoring & data recording features
• (Optional) 4-channel paperless recorder
• Overheat protection system

Contact us at cs@smindo.co.id to learn more about this furnace, and consult with us regarding your process. Thank you.

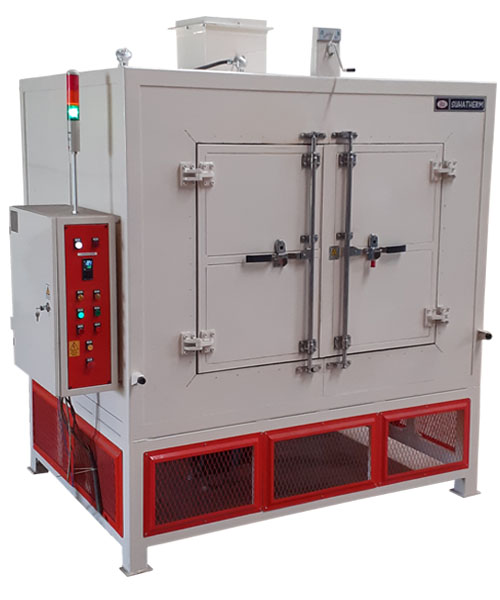

the SUHATHERM Anneal Oven Teflon Coating Furnace 800 °C (AOTCF-01) was designed for the heating process of Teflon coating.

Furnace Construction

• Maximum operating temperature up to 800 °C
• Inner dimension: Width 1400 mm x Depth 1000 mm x Height 1000 mm (approx. vol 1400 Ltr)
• Overall dimension: Approx. Width 2180/2530 mm x Depth 1790 mm x Height 2900 mm
• Hi-grade, lightweight insulating bricks backed up by ceramic fibre board & blanket for energy efficiency
• Double-leaf manual swing door-type
• Manually-adjustable swing-type exhaust damper

Heating & Forced Cooling System (Contact us for Details)

• Free radiating open coal spiral heaters, supported by hi-grade ceramic tubes located on the left, right, & bottom sides of the furnace wall for enhanced temperature uniformity
• Forced cooling with appopriately powered centrifugal blower

Electrical Features

• Furnace wall-mounted type electrical control panel
• Digital Indicating PID temperature controllers with SCR power regulator for improved temperature stability & heater lifetime

Safety & Monitoring

• (Optional) 6-channel paperless temperature recorder
• Overheat protection system by heater power interlock with limiter temperature controller
• (Optional) Human-machine interface (HMI) toucshreen operating system
  • Elementary real-time process monitoring & recording features.

Warranty

1-year warranty*
*terms & conditions apply

Please contact us at cs@smindo.co.id for technical consultation and more details.

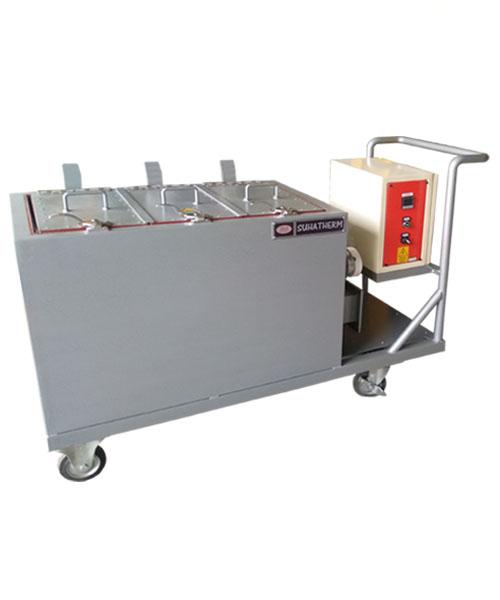

Our Pre-Heated Pack Wagon Furnace 320 °C (PH-PWF-01) was designed for the textile industry, specifically for pre-heating textile dies.

Furnace Construction

• Maximum temperature up to 320 °C, working operating temperature at 305 °C
• Outer Dimension: Width 620 mm x Length 1550 mm x Height 1000 mm
• Inner dimension:
  • Included shelf & heaters: Width 420 mm x Length 725 mm x Height 490 mm
  • Working space: Width 420 mm x length 725 mm x Height 230 mm
• 3 manual leaf swing-up doors sealed with a heat-resistant gasket
• Industrial rock wool insulation with heat-resistant paint

Heating System

• U form flanged heaters with 5 pcs x S/S SUS 304 heated tubular heater
• Total Power: 5 pcs x 0.7 KW = 3.5 KW, 220 V

Electrical Features

• Digital indicating temperature controller with PID control action
• Industrial process type K with stainless steel protection tube & aluminium protection head
• No fuse breaker (NFB) & magnetic contactor ex. Fuji

Safety

• Overheat protection system
• Pilot lamp

Warranty

• 1-year spare parts and services warranty (normal operation)

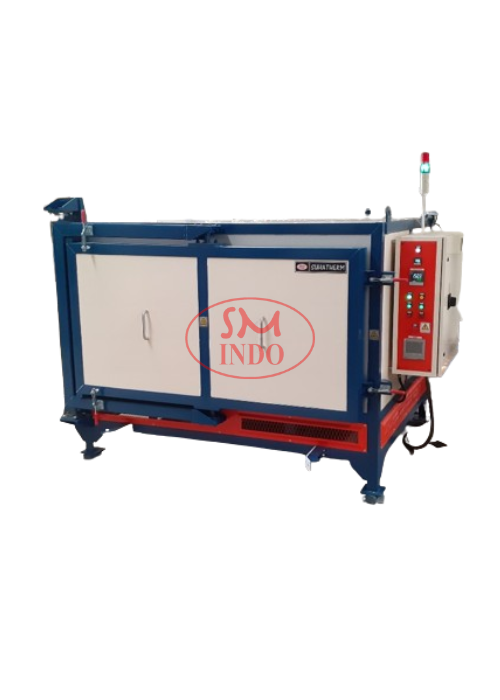

This aerospace furnace is designed for the tempering & bake-out process in the manufacturing process of engine components for Boeing 737-85P. This 1500 Ltr electric furnace is capable up to temperatures of 650 °C, and uses a proportional forced convection heating system with SCR power regulator (thyristor) to enable excellent temperature uniformity up to required AMS2750E pyrometry standard.

• Designed & manufactured for tempering & baking process for aerospace engines
• Maximum operating temperature up to 650 °C
• Inner dimension : L. 1200 mm x W. 1500 mm x H. 825 mm
• High-insulation with insulating brick coupled with ceramic fiber board & blanket.
• Electric heating-based forced convection with :
  • Hot air re-circulating system
  • Combination air flow
  • SCR power regulator (thyristor) for proportional heating control & extended heater durability
• Remote floor standing type electrical control panel
• Japanese temperature controller, progammable to 8 program pattern with 16 segments/pattern
  • 0.3% indication accuracy
• Paperless thermorecorder up to 12 point recordings
• Overheat protection system with electrical interlock, with other sound/visual indicators
• Calibrated thermocouple for temperature uniformity survey (TUS) to AMS2750E pyrometry standards.

*Spareparts & Services Warranty Available
*Terms & Conditions Apply
