Specification

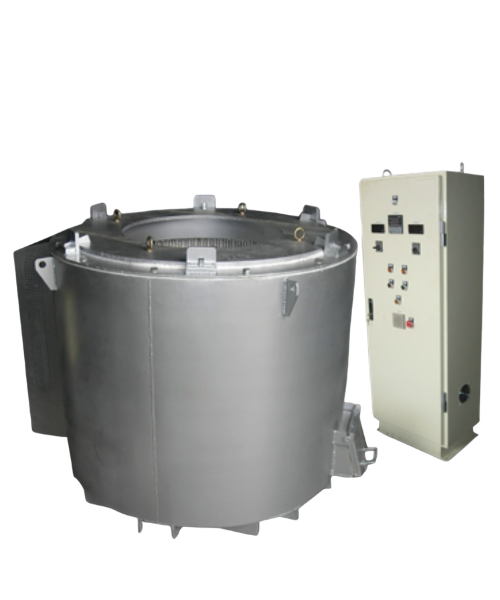

The SUHATHERM Crucible Aluminium Holding Furnace (CAHF-500) is designed for holding molten aluminium for die casting process. Furnace made in Indonesia, we can customize the capacity and dimensions of the holding furnace. We can also customize the heating source of the furnace, from gas (burner type) to electric furnace (heater type).

• Holding capacity: 500 kg molten aluminium (in crucible).
• Maximum heating chamber temperature up to 1050 °C
• Overall dimension: Dia. 1280 mm x H. 1085 mm
• Mild steel outer shell finished by heat resistant paint
• Combination of ceramic board & ceramic fibre blanket interior to ensure minimal heat loss
• Free radiant heating system by electric heater (heater type) or gas (burner type) system
• Remote floor standing type electrical control panel
• Microprocessor based digital indicating temperature controllers
• Overheat protection system
• Industrial process thermocouples
• Full proportional control by SCR power regulator

Note:

The above specifications are for general reference only. For detailed technical specifications & custom-designed solutions, please contact cs@smindo.co.id.

Specification

Aluminium Holding Furnace, otherwise known as Holimesy Furnace (HF-800) is designed for holding molten aluminium for die casting process. Furnace made in Indonesia, we can customize the capacity and dimensions of the holding furnace.

• Suitable for high pressure die casting machine
• Holding capacity : 800 Kg molten aluminium
• Maximum heating chamber temperature up to 900°C
• Inner dimension : Width 1716 mm x Depth 1953 mm x Height 1751 mm
• Lining with high grade molten aluminium resistant material backed up by multi layer insulation material to ensure excellent heat efficiency
• Direct heating by electric heater
• Remote floor standing type electrical control panel
• Microprocessor based digital indicating temperature controller
• Overheat protection system
• Industrial process thermocouple sensor
• Equipped with molten level detector
• Proportional heating control by SCR power regulator.

Spare Parts Warranty : 1 Year (Normal Operation)

Specification

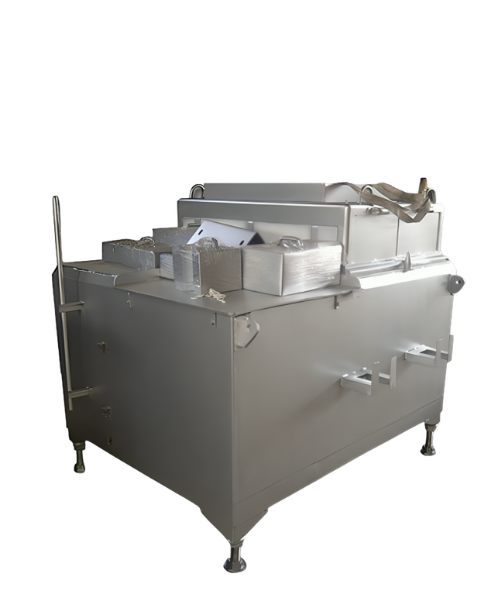

Aluminium Holding Furnace, otherwise known as Holimesy Furnace (HF-900) is designed for holding molten aluminium for die casting process. Furnace made in Indonesia, we can customize the capacity and dimensions of the holding furnace. We can also customize the furnace heating source, from gas furnace (burner type) to electric furnace.

• Holding capacity: 900 kgs Molten Aluminium
• Maximum heating chamber temperature up to 900 °C
• Overall dimension: W. 1780 mm x D. 1405 mm x H. 1150 mm
• Lining with high grade molten aluminium resistant material backed up by multi-layer insulation material to ensure excellent heat efficiency
• Direct heating by electric heater
• Remote floor standing electrical control panel
• Microprocessor based digital indicating temperature controller
• Overheat protection system
• Industrial process thermocouple sensor
• Equipped with molten level detector
• Full proportional heating control by SCR power regulator

Note:

The above specifications are for general reference only. For detailed technical specifications & custom-designed solutions, please contact cs@smindo.co.id.

Specification

Aluminium Holding Furnace, otherwise known as Holimesy Furnace (HF-800) is designed for holding molten aluminium for die casting process. Furnace made in Indonesia, we can customize the capacity and dimensions of the holding furnace. We can also customize the heating source, from gas furnace (burner) to electric furnace.

• Suitable for high pressure die casting machine
• Holding capacity : 800 Kg Molten Aluminium
• Maximum heating chamber temperature up to 800°C
• Overall dimension : Width 1610 mm x Depth 1200 mm x Height 1230 mm
• Lining with high grade molten aluminium resistant material backed up by multi-layer insulation material to ensure excellent heat efficiency.
• Direct heating by electric heater
• Remote floor standing type electrical control panel
• Microprocessor based digital indicating temperature control
• Overheat protection system
• Industrial process thermocouple sensor
• Equipped with molten level detector
• Full proportional heating control by SCR power regulator

Spare Parts Warranty : 1 Year (Normal Operation)

Specification

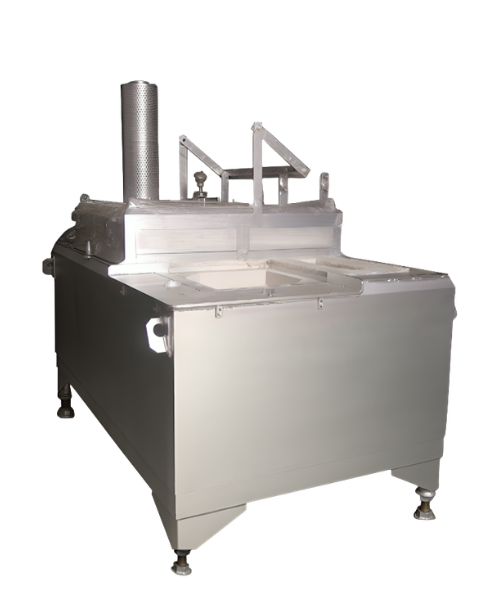

Aluminium Holding Furnace, otherwise known as Holimesy Furnace (HF-900B) is designed for holding molten aluminium for die casting process. Furnace made in Indonesia, we can customize the capacity and dimensions of the holding furnace. We can also customize the furnace heating source, from gas furnace (burner type) to electric furnace.

• Holding capacity: 900 kgs molten aluminium
• Overall dimension: W. 1780 mm x D. 1405 mm x H. 1580 mm
• Lining with high grade molten aluminium resistant material backed up by multi-layer insulation material to ensure excellent heat efficiency.
• Direct heating by gas burner
• Remote floor standing type electrical control panel
• Microprocessor based digital indicating temperature controller
• Overheat protection system
• Full protection system on burner parts
• Industrial process thermocouples
• Equipped with molten level detector
• Full proportional burner control by modutrol

Note:

The above specifications are for general reference only. For detailed technical specifications & custom-designed solutions, please contact cs@smindo.co.id.
