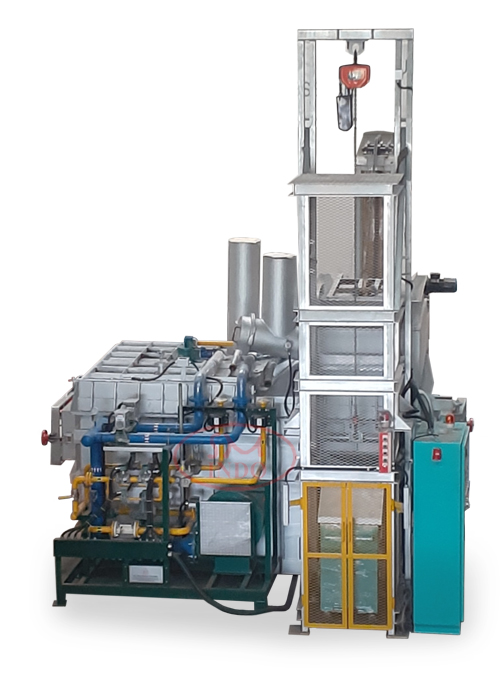

Specification

• Suitable for Gravity Casting & Low Pressure Die Casting Machine
• Melting Rate : 500 Kg/Hour, Holding Rate : 1200 Kg
• Overall Dimension (Approx.) : Width 4125 mm x Depth 4605 mm x Height 3965/5965 mm
• Mild steel outer shell finished by heat resistant paint
• Lining with alumunium non melting castable (Hot face) backed up by multi layer insulation material to ensure the low heat loss & low power consumption
• Melting & holding chamber heat source by gas burner Ex. Eclipse (USA)
• Steel structure charging tower equipped with bucket elevator & electrical charging hoist
• Automatic charging door actuated by gear motor or pneumatic cylinder (Optional)
• Moveable charging bucket (Optional)
• Manual swing type sledging & fluxing door secured by manual steer
• Remote floor standing type electrical control panel
• PLC wired control circuit
• Microprocessor based digital indicating temperature controller on melting exhaust, holding chamber & molten temperature control
• Overheat protection system
• Full protection system on charging & burner part
• Special industrial process thermocouple on melting exhaust, holding chamber & molten sensor
• Installed with molten level detector
• Remote burning gas train
• Digital gas flow meter (Optional)

Specification

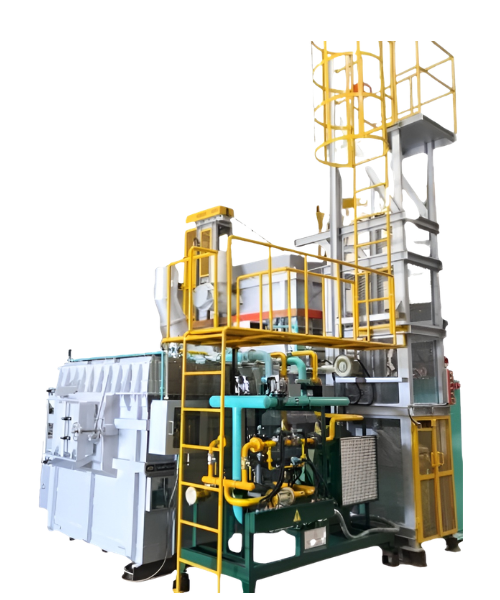

The SUHATHERM ACMF 480 1800 aluminum continuous melting furnace is designed with a 450 kg/hour melting rate, with a 1800 kg holding capacity.

Construction Details

• Melting rate: 450 kg/hour with holding capacity: 1800 Kg
• Mild steel outer shell finished by heat resistant paint
• Lining with aluminium non-wetting castable (hot face applications) backed up by multi-layer insulation material to ensure low heat loss & low power consumption
• Melting & holding chamber heat source by gas burner
• Steel structure automatic charging tower equipped with bucket elevator & electric charging hoist
• Automatic charging door actuated by gear motor or pneumatic cylinder
• Manual swing-type sledging & fluxing door
• Remote floor standing type electrical control panel
• PLC wired control circuit
• Microprocessor-based digital indicating temperature controller on melting exhaust, holding chamber & molten temperature control
• Overheat protection system
• Full protection system on charging & burner part
• Special industrial process thermocouple on melting exhaust, holding chamber & molten sensor
• Equipped with molten level detector
• Remote burning gas train

Optional Features

• Digital gas flow meter (optional)
• Manual or automatic tap-out unit actuated by pneumatic air cylinder (optional)
• Moveable charging bucket (optional)

Note:

The above specifications are for general reference only. For detailed technical specifications & custom-designed solutions, please contact cs@smindo.co.id.

Specification

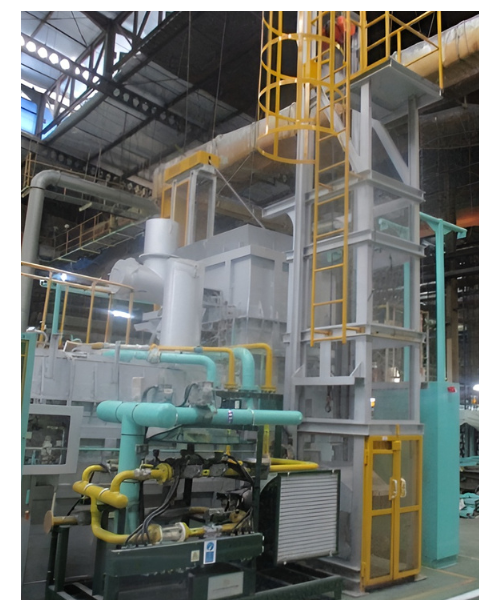

The SUHATHERM ACMF 700 2800 aluminum continuous melting furnace is designed with a 700 kg/hour melting rate, with a 2800 kg holding capacity.

Construction Details

• Melting rate: 700 kg/hour with holding capacity: 2800 Kg
• Mild steel outer shell finished by heat resistant paint
• Lining with aluminium non-melting castable (hot face applications) backed up by multi-layer insulation material to ensure low heat loss & low power consumption
• Melting & holding chamber heat source by gas burner
• Steel structure automatic charging tower equipped with bucket elevator & electric charging hoist
• Automatic charging door actuated by gear motor or pneumatic cylinder
• Manual swing-type sledging & fluxing door
• Remote floor standing type electrical control panel
• PLC wired control circuit
• Microprocessor-based digital indicating temperature controller on melting exhaust, holding chamber & molten temperature control
• Overheat protection system
• Full protection system on charging & burner part
• Special industrial process thermocouple on melting exhaust, holding chamber & molten sensor
• Equipped with molten level detector
• Remote burning gas train

Optional Features

• Digital gas flow meter (optional)
• Manual or automatic tap-out unit actuated by pneumatic air cylinder (optional)
• Moveable charging bucket (optional)

Note:

The above specifications are for general reference only. For detailed technical specifications & custom-designed solutions, please contact cs@smindo.co.id.
