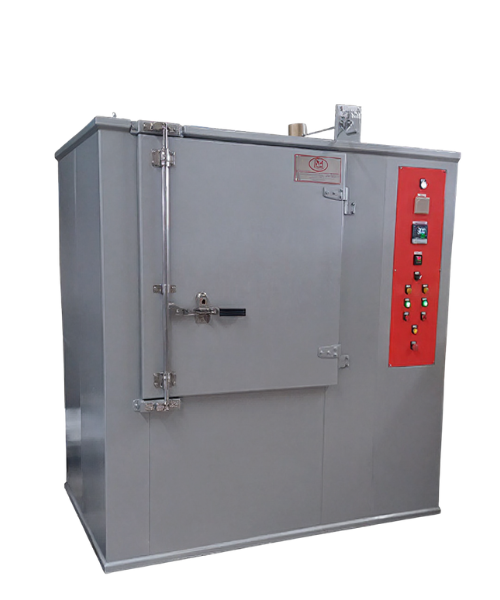

Specification

• Maximum operating temperature up to 300 ºC
• Inner dimension : Width 900 mm x Depth 990 mm x Height 990 mm
• SUS 304 Stainless steel interior
• Air tight single leaf swing door
• Manual adjustable air inlet and exhaust dumper
• Force convection with:
  • Hot air re-circulating system
  • Horizontal air flow, side to side blowing direction
• Built-in oven type electrical control panel
• Microprocessor based digital indicating temperature controller
• Overheat protection system
• Digital timing system for soaking / holding process
• Industrial process thermocouple
• On/off heating control (Optional : Full proportional heating control)

Spare Parts Warranty : 1 Year (Normal Operation)

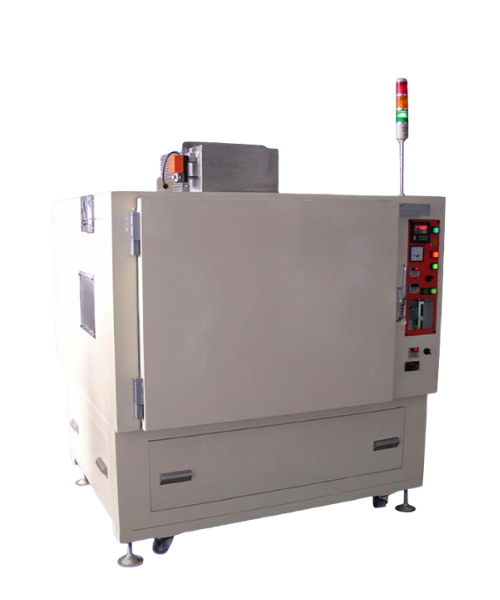

Specification

• Tumbler cabinet oven
• Suitable for treating rubber parts
• Range operating temperature   40°C ~ 200°C
• Inner dimension : Width 1000 mm x Depth 800 mm x Height 800 mm
• Tumbler dimension : Dia 600 mm x Length 295 mm
• 3 Nos tumbler inside chamber, rotate by adjustable speed geared motor
• SUS 304 Stainless steel interior and tumbler material
• Single leaf airtight swing door
• Forced exhauster with automatic (motorized) inlet and exhaust dumper
• Forced convection with :
  • Hot air re-circulating system
  • Vertical air flow, heated air flow from top to bottom
  • 2 Nos circulation blower
• Electric door lock system
• Built-in oven type electrical control panel
• Microprocessor based digital indicating temperature controller
• Overheat protection system
• Digital timing system for soaking / holding process
• Industrial thermocouple sensor
• Heater Power Switching Control by SCR Power Regulator
• Paper chart thermo recorder (Optional: Paperless type thermo recorder)

Spare Parts Warranty : 1 Year (Normal Operation)



Specification

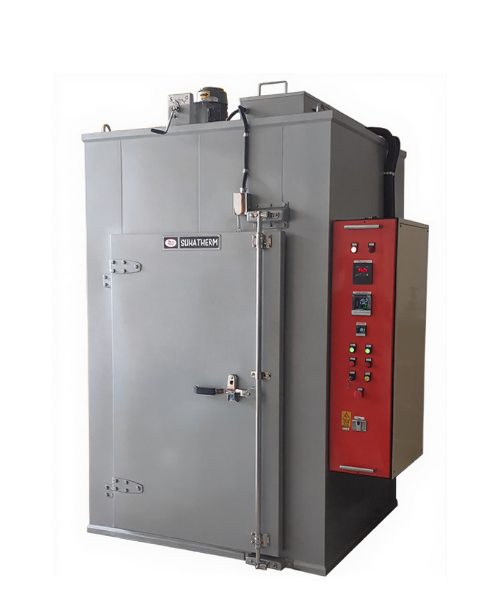

The SUHATHERM Cabinet Drying Oven CDO-01 is an aerospace-grade, AMS2750E pyrometry compliant oven, with temperatures designed up to 260 °C. This forced convection oven is engineered for drying aeroplane metal parts, with electrical instruments and temperature uniformity compliant to AMS2750E standards.

PT Suhatherm Manufacturing Indonesia is capable of manufacturing industrial ovens in compliance with AMS2750 Class 1 (±3 °C) uniformity standards, or according to alternative specifications as required by the client

• Used for drying aeroplane metal parts
• Working temperature: 260 °C (Max. temperature : 200 °C)
• Build to meet AMS2750E standard requirements
• Inner Dimension (Approx.) : Width 950 mm x Depth 1100 mm x Height 1500 mm
• SUS 304 stainless steel Interior
• Mild steel exterior finished by Jotun protective paint
• Air tight single leaf manual operated swing door sealed by heat resistant gasket
• Forced convection heating system with:
  • Electric heaters
  • Hot air re-circulating system
  • Horizontal air flow, side to side blowing direction
• Manual fresh air inlet and exhaust outlet swing damper
• Oven wall-mounted type electrical control panel
• Microprocessor based digital indicating temperature controller compliant to AMS2750E requirement (Accuracy: ±1.1 °C)
• Equipped with overheat protection system by chamber temperature limiter & heater overheat protector controller
• Industrial metal sheathed thermocouple type N completed with UKAS Calibration Certificate to AMS2750E
• Full proportional heating control by SCR power regulator
  c/w Features:
  • PWM system for very good linear control
  • High accuracy and fast response
  • Able to keep steady temperature very well
  • Extends heater life

1-year spareparts warranty*
*Terms & conditions apply
