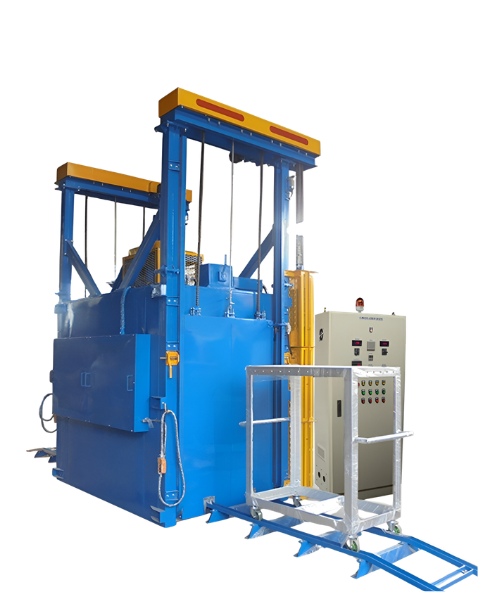

Specification

• Suitable for heating process with working temperature up to 200°C ( Max )
• Inner dimension : Width 1000 mm x Depth 2000 mm x Height 1500 mm
• SUS 304 Stainless Steel plate interior
• Motorized lifting up door
• Manual entrance & exit work piece trolley
• Manual adjustable air inlet and exhaust dumper
• Forced convection with :
  • Hot air re-circulating system
  • Combination air flow from both side of oven wall return to the top wall
• Remote floor standing type electrical control panel
• Microprocessor based digital indicating temperature controller
• Digital timing system for soaking / holding process
• Overheat protection system
• Industrial process thermocouple sensor
• Full proportional heating control by SCR power regulator
• Custom work piece trolley ( optional )

Spare Parts Warranty : 1 Year (Normal Operation)

Specification

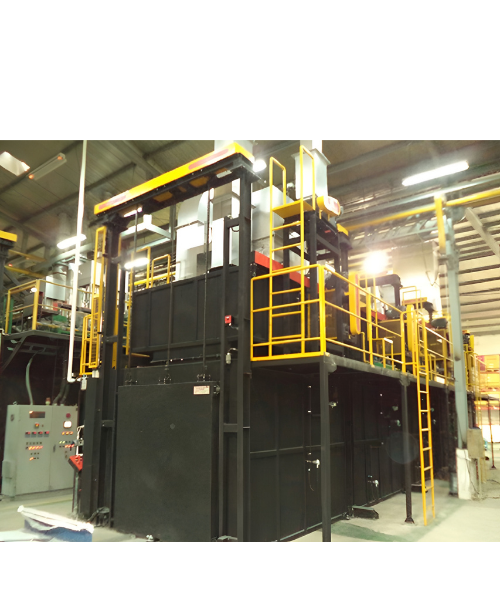

MBCS-SCO is our multi chamber semi-continuous oven, using American burners as the heat source. This oven, otherwise known as electrode baking oven is capable for multi-step heating process up to 480°C.

• Suitable for baking process of welding electrode
• Gas burner heating source
• 5 Chamber zone
• Maximum temperature on each chamber :
  • Zone 1 : up to 95°C (Drying with utilized heat source from zone 2~3 fuel gas chamber )
  • Zone 2 : up to 240°C ( 1st Baking )
  • Zone 3 : up to 480°C ( 2nd Baking )
  • Zone 4 : up to 480°C ( 3rd Baking )
  • Zone 5 : up to 50°C  ( Cooling )
• Inner dimension (On each chamber) : Width 1500 mm x Depth 14800 mm x Height 1900 mm
• Pneumatic lifting up door on each chamber
• Motorized work piece trolley conveyor
• Forced convection heating system on Zone 1~ Zone 4 heating chamber with :
  • Hot air re-circulating system
  • Combination air flow from both side of oven wall and return to top wall
• Forced cooling system on Zone 5 cooling chamber with :
  • One through cooling air
  • Combination cooling air flow from both side of chamber wall exhausted to the outside
• Excess dampness extraction blower on zone 2 & 3 chamber
• Fuel gas exhauster blower on zone 1 chamber
• Pneumatic air inlet and exhaust dumper on zone 2 & zone 3 chamber
• Motorized fuel gas dumper on zone 1 chamber
• Remote floor standing type electrical control panel
• Touch screen ( HMI ) operating system
• PLC ( Programmable Logic Control ) control circuit
• Full protection system on burner part, pneumatic part, conveyor part, heating part and cooling part.
• Full proportional heating & cooling control
• 18 channel paperless thermo recorder
• Workpiece trolley (optional)

*Spareparts & services warranty

Specification

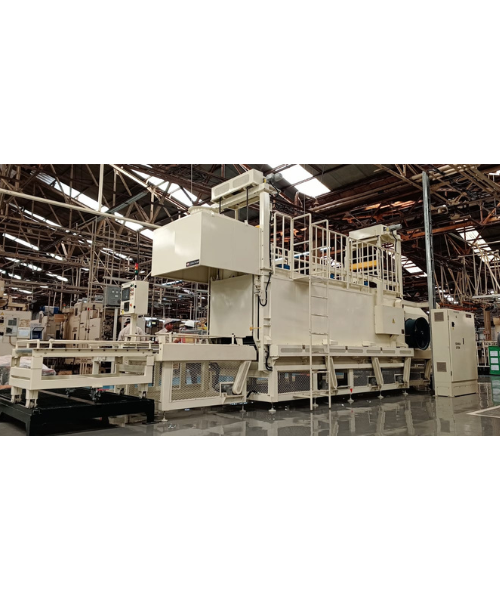

Our SUHATHERM Semi-Continuous,Three Zone Tempering Oven (SC-TZ-TO) is designed for low temperature tempering heat treatment of various automotive components. This oven features an automatic motorized conveyor complete with one-touch operation system which moves jig from loading, 3-zone heating chamber, forced cooling (with axial fan), and unloading section.

This oven features multiple safety features and sensors. Operational status can be viewed at all times through built-in human machine interface (HMI). Please refer to the below specifications for details (note specifications acts as reference only and may change depending on order configuration):

1. Operating Temperature : 150 ~ 200 °C*
2. Tempering Time: 160 minutes*
3. Cycle Time: ± 53.5 minute/tray

*Parameters Customizable According to Client Needs

Oven Dimension:

1. Overall: W. 2900 x L. 7900 x H. 3800 mm
2. Heating Chamber: W. 1000 x L. 4190 x H. 800 mm
3. Workpiece Tray (Optional & Customizable Based on Products)

Heating System:

1. Hot Air Agitating System with Non-Radiating Finned Industrial Heaters
2. Total 105.3 kW
3. Full Proportional Heating Control with SCR Power Regulator, PWM System, Enabling Better Uniformity & Extended Heater Life
3. c/w Agitating Axial Fan (1 Nos per Heating Zone)

Forced Cooling:

1. 2 Nos 0.55 kW Axial Fan Placed on Forced Cooling Section

Electrical Control:

1. Human Machine Interface (HMI) & PLC Control System - Controls & Displays Operational Status at All Times.
2. Thermocontrols Ex. Japan
3. Optional Multi-Channel Paperless Recorder

Safety:

1. Multi-layer Overheat Protection by PID Alarm & Temperature Control Limiter
2. Photo Sensor & Limit Switch
3. Auto-Locking Doors, Pinch Point Protection
4. Multiple Interlocks to Ensure Operational Procedure is Followed
5. MCCB & Fast Acting Fuse for Electrical Safety

Other Equipments & Features

1. Daisha (Standing Platform) & Jig Platform as Required by User

*Note temperature, cycle time, dimension, & features can be customized according to client needs.

Specification

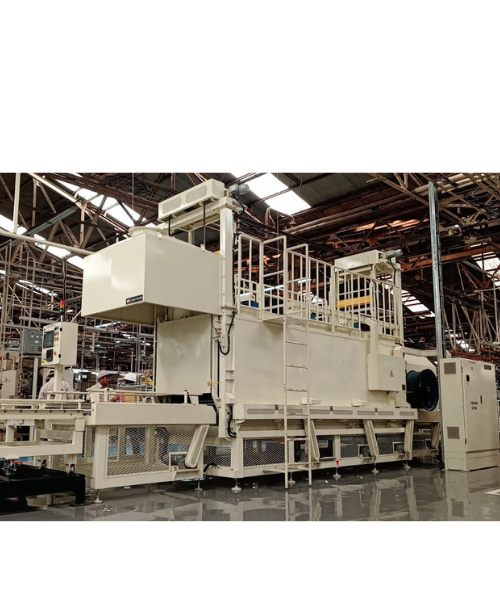

Our SUHATHERM Semi-Continuous,Three Zone Tempering Oven (SC-TZ-TO) is designed for low temperature tempering heat treatment of various automotive components. This oven features an automatic motorized conveyor complete with one-touch operation system which moves jig from loading, 3-zone heating chamber, forced cooling (with axial fan), and unloading section.

This oven features multiple safety features and sensors. Operational status can be viewed at all times through built-in human machine interface (HMI). Please refer to the below specifications for details (note specifications acts as reference only and may change depending on order configuration):

1. Operating Temperature : 150 ~ 200 °C*
2. Tempering Time: 160 minutes*
3. Cycle Time: ± 53.5 minute/tray

*Parameters Customizable According to Client Needs

Oven Dimension

1. Overall: W. 2900 x L. 7900 x H. 3800 mm
2. Heating Chamber: W. 1000 x L. 4190 x H. 800 mm
3. Workpiece Tray (Optional & Customizable Based on Products)

Heating System:

1. Hot Air Agitating System with Non-Radiating Finned Industrial Heaters
2. Total 105.3 kW
3. Full Proportional Heating Control with SCR Power Regulator, PWM System, Enabling Better Uniformity & Extended Heater Life
3. c/w Agitating Axial Fan (1 Nos per Heating Zone)

Forced Cooling

1. 2 Nos 0.55 kW Axial Fan Placed on Forced Cooling Section

Electrical Control

1. Human Machine Interface (HMI) & PLC Control System - Controls & Displays Operational Status at All Times.
2. Thermocontrols Ex. Japan
3. Optional Multi-Channel Paperless Recorder

Safety

1. Multi-layer Overheat Protection by PID Alarm & Temperature Control Limiter
2. Photo Sensor & Limit Switch
3. Auto-Locking Doors, Pinch Point Protection
4. Multiple Interlocks to Ensure Operational Procedure is Followed
5. MCCB & Fast Acting Fuse for Electrical Safety

Other Equipments & Features

1. Daisha (Standing Platform) & Jig Platform as Required by User

*Note temperature, cycle time, dimension, & features can be customized according to client needs.
