• Maximum operating temperature up to 200°C
• Inner dimension : Width 432 mm x Depth 700 mm x Height 725 mm
• Mild Steel interior, painting finish by heat resistant panel
• Manual lifting up by using stick handle
• Manual adjustable exhaust dumper
• Mechanical convection heating system by electric heater from both side oven wall
• Oven wall mounted electrical control panel
• Microprocessor based digital indicating temperature controller
• Overheat protection system
• Digital timing system for soaking / holding process
• Industrial process thermocouple sensor
• On / off heating control (Optional: Full proportional heating control)

Spare Parts Warranty : 1 Year (Normal Operation)

• Maximum operating temperature up to 300°C
• Inner dimension : Width 720 mm x Depth 800 mm x Height 530 mm
• SUS 304 Stainless Steel plate interior
• Manual lifting up by oven door arm
• Manual adjustable exhaust dumper
• Mechanical convection heating system by electric heater from both side oven wall
• Oven wall mounted electrical control panel
• Microprocessor based digital indicating temperature controller
• Overheat protection system
• Digital timing system for soaking / holding process
• Industrial process thermocouple sensor
• On / off heating control (Optional: Full proportional heating control)

Spare Parts Warranty : 1 Year (Normal Operation)

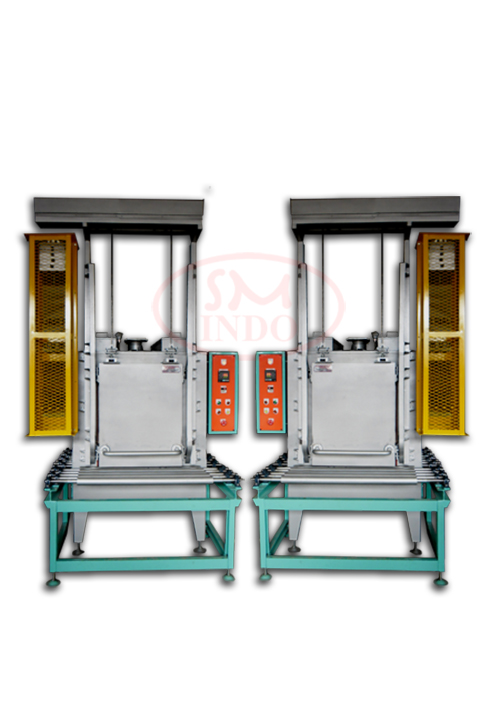

• Twin chamber with gravity roller at front & inner side vertical lift door oven
• Maximum operating temperature up to 250°C (Chamber 1) & 450°C (Chamber 2)
• Inner dimension (On each chamber) : Width 550 mm x Depth 1500 mm x Height 700 mm
• SUS 304 Stainless Steel plate interior
• Manual lifting up by oven door arm
• Manual adjustable exhaust dumper
• Mechanical convection heating system by electric heater from both side oven wall
• Oven wall mounted electrical control panel ( 1 Panel on each chamber)
• Microprocessor based digital indicating temperature controller
• Overheat protection system
• Digital timing system for soaking / holding process
• Industrial process thermocouple sensor
• On / off heating control (Optional: Full proportional heating control)

Spare Parts Warranty : 1 Year (Normal Operation)

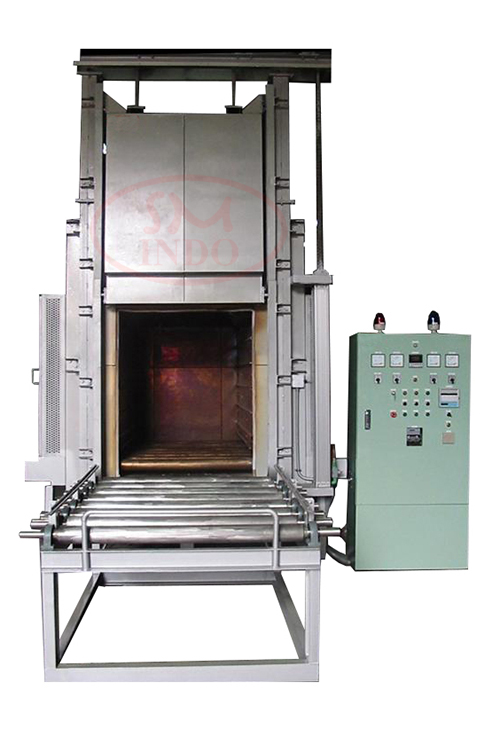

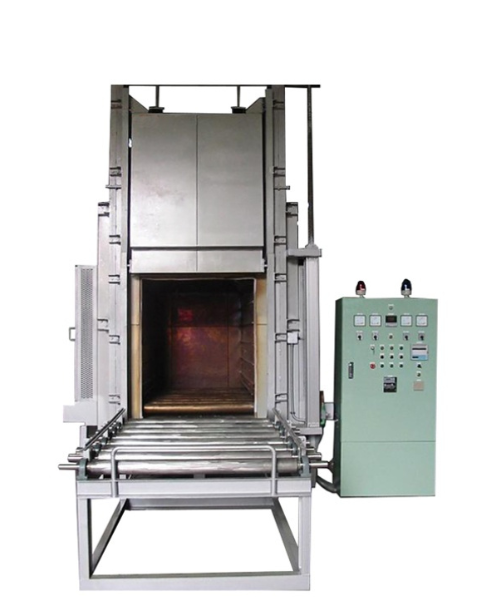

• Hi-Temp vertical lift door oven with heat resistant gravity roller at front & inner side oven chamber for easy loading & unloading process
• Maximum operating temperature up to 500°C
• Inner dimension : Width 980 mm x Depth 1670 mm x Height 1300 mm
• SUS 304 Stainless Steel plate interior
• Pneumatic lifting up door
• Forced convection with :
  • Hot air circulation system
  • Combination airflow, from both side oven wall return to top wall
• Remote floor standing type electrical control panel
• Microprocessor based digital indicating temperature controller
• Overheat protection system
• Digital timing system for soaking / holding process
• Industrial process thermocouple sensor
• Full proportional heating control by SCR power regulator
• Paper chart thermo recorder (Optional: Paperless type thermo recorder )
• Custom work piece bucket (optional)

Spare Parts Warranty : 1 Year (Normal Operation)

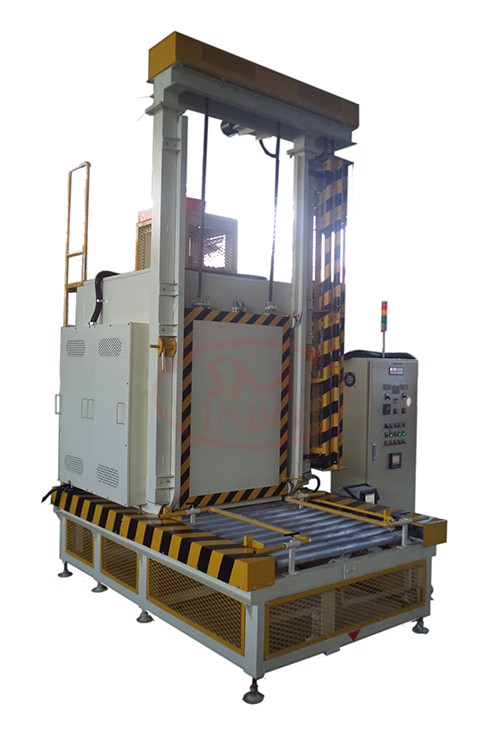

Our high temperature vertical lift door oven (VLDO-PRC-OT), is designed for heat treatment of metal parts, specifically tempering. Also known as tempering oven, tempering furnace, or batch oven in other areas, this oven is equipped wih an up to 250°C heating capability, suitable for low temperature tempering. This oven is also equippe with power roller conveyor to enable better worker ergonomics, and one touch operation system for ease of use.

• Suitable for metal parts heat & surface treatment
• Maximum operating temperature up to 250°C
• Inner dimension : Width 800 mm x Depth 1050 mm x Height 1000/1265 mm
• SUS 304 Stainless Steel plate interior
• Motorized lifting up door
• Motorized power roller conveyor
• Forced convection with :
  • Hot air re-circulating system
  • Combination airflow, from both side oven wall return to top wall
• Remote floor standing type electrical control panel
• One touch operating system
• PLC (Programmable Logic Control) control circuit
• Microprocessor based digital indicating temperature controller
• Overheat protection system
• Digital timing system for soaking / holding process
• Industrial process thermocouple sensor
• 9 channel paperless thermo recorder
• Full proportional heating control by SCR power regulator
• Custom work piece bucket (optional)

*Spare parts & services warranty available

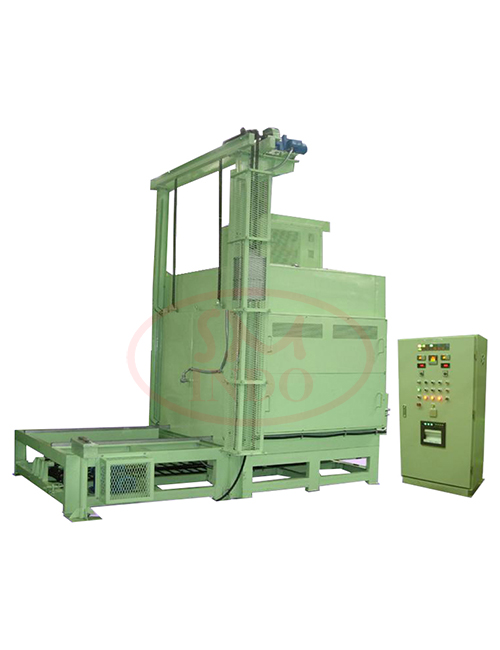

Our vertical lift door oven (VLDO-ASTC-OT), also known as tempering oven, tempering furnace, or aging oven is designed for the aging/tempering process of metal parts. Made in Indonesia, this oven is equipped with automatic sliding table conveyor and one touch operation system to enable better worker ergonomics and productivity. This oven has an operating temperature up to 250°C, suitable for low temperature tempering.

• Suitable for aging process of metal parts
• Maximum operating temperature up to 250°C
• Inner dimension : Width 1400 mm x Depth 1400 mm x Height 1090 mm
• SUS 304 Stainless Steel plate interior
• Motorized lifting up door
• Motorized sliding in / out work piece carrier
• Forced convection with :
  • Hot air circulation system
  • Combination airflow, from both side oven wall return to top wall
• Remote floor standing type electrical control panel
• One touch operating system
• PLC (Programmable Logic Control) control circuit
• Microprocessor based digital indicating temperature controller
• Overheat protection system
• Digital timing system for soaking / holding process
• Industrial process thermocouple sensor
• 12 Channel paper chart thermo recorder
• Full proportional heating control by SCR power regulator
• Custom work piece bucket (optional)

*Spareparts and services warranty available

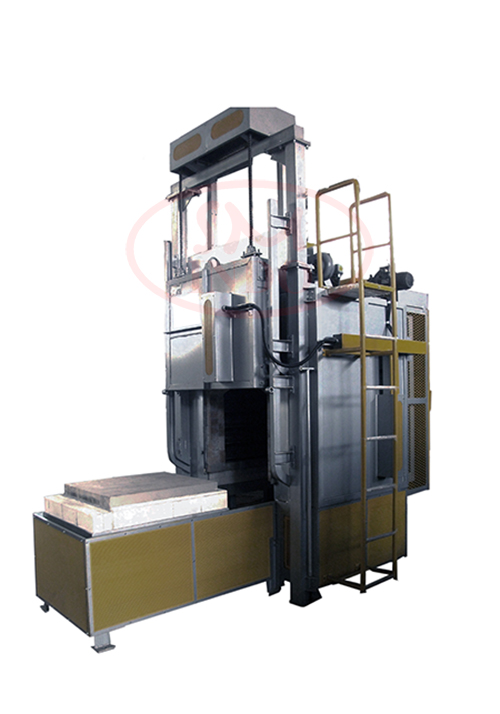

Our high temperature vertical lift tempering oven (VLDO-AST-HT), is designed for heat treatment of metal parts, specifically tempering. Also known as tempering oven, tempering furnace, or batch oven, this oven is equipped with auto sliding table to enable better worker ergonomics. This oven is capable to temperatures up to 800°C, and is equippe with fire brick inner wall for excellent insulation.

• Suitable for heat treatment of metal parts
• Maximum operating temperature up to 800°C
• Inner dimension : Width 700 mm x Depth 700 mm x Height 600 mm
• SUS 310 Stainless Steel plate ducting wall
• Fire brick inner wall (Backup by insulating brick & ceramic fibre board)
• Motorized lifting up door
• Motorized sliding in / out boogie work piece carrier
• Forced convection with :
  • Hot air re-circulating system
  • Combination air flow from both side oven wall return to top wall
• Remote floor standing type electrical control panel
• Programmable temperature controller with 2 heating pattern (8 segment on each pattern)
• Overheat protection system
• Digital timing system for soaking / holding process
• Industrial process thermocouple sensor
• Full proportional heating control by SCR power regulator

Spare Parts Warranty : 1 Year (Normal Operation)
