• Suitable for dry preheating source & preheating ceramic stalk of LPDC (Low Pressure Die Casting) machine
• Maximum operating temperature up to 1000°C
• 2 Nos Heating chamber
• Inner dimension : Dia. 160 mm x Depth 600 mm
• Free radiating heating system by electric heater
• Built-in oven type electrical control panel
• Microprocessor based digital indicating temperature controller
• Overheat protection system
• Digital timing system for soaking / holding temperature inside chamber
• Industrial process thermocouple sensor
• Full proportional heating control by SCR power regulator

Spare Parts Warranty : 1 Year (Normal Operation)

• Designed & manufactured for wheel ring expansion
• Maximum operating temperature up to 700°C
• Inner dimension : Dia. 240 mm x Depth 425 mm
• Customized moveable furnace with sliding table at bottom side for unloading work piece
• Hi-grade insulating fire bricks interior backed up by ceramic fibre board & blanket
• Free radiating heating system by electric heaters
• Built-in (Under furnace chamber) mounting type electrical control panel
• Microprocessor based digital indicating temperature controller
• Overheat protection system
• Industrial process thermocouple sensor
• Full proportional heating control by SCR power regulator
• Work piece jig (optional)

Spare Parts Warranty : 1 Year (Normal Operation)

• Designed & manufactured for bright annealing cooper & stainless steel part
• Maximum operating temperature up to 1000°C
• Vacuum chamber dimension : Width 400 mm x Depth 430 mm
• Hi-grade insulating bricks interior backed up by ceramic fibre board & blanket
• Vacuum tight door secured by manual steer
• Free radiating heating system by electric heaters
• Remote floor standing type electrical control panel
• 2 pattern programmable digital indicating temperature controller
• Overheat protection system
• Industrial process thermocouple sensor
• Full proportional heating control by SCR power regulator

Spare Parts Warranty : 1 Year (Normal Operation)

• Designed & manufactured for T6 solution furnace
• Maximum operating temperature up to 600°C (Working : 450-550°C)
• Inner dimension : Width 1485 mm x Depth 4400 mm x Height 965 mm
• Hi-insulated with high temperature fibre insulation material
• Gas burner heating source
• Forced convection with :
  • Hot air re-circulating system
  • Combination air flow from both side of furnace wall return to top
  • 3 Zone heating control
• Remote floor standing type electrical control panel
• Microprocessor based digital indicating temperature controller
• Overheat protection system
• Digital timing system for soaking / holding process
• Industrial process thermocouple sensor
• Full proportional firing control by modutrol

Spare Parts Warranty : 1 Year (Normal Operation)

• Designed & manufactured for 3 different types heat treatment (Calcination, solution & aging process)
• Maximum temperature up to 600°C with :
  • Calcination Process        : 450°C
  • T6 / Solution Process     : 528°C
  • Aging Process                 : 180°C
• Inner dimension : Dia. 1400 mm x Height 1900 mm
• Insulated with high temperature fibre insulation material
• Motorized furnace cap / funnel
• Motorized bucket truck
• Hydraulic work piece bucket lifter
• Forced convection with :
  • Hot air re-circulating system
  • Vertical air flow from bottom wall return to top wall
  • 2 Nos hot air circulation blower
• Remote floor standing type electrical control panel
• PLC (Programmable Logic Control) control circuit
• Microprocessor based digital indicating temperature controller
• Overheat protection system
• Digital timing system for soaking / holding for each process
• Industrial process type K temperature sensor
• Full proportional heating control by SCR power regulator
• 10 channel paperless thermo recorder.

Spare Parts Warranty : 1 Year (Normal Operation)

• Designed & Manufactured for sintering process
• Maximum operating temperature up to 800 °C (Working Temperature : 600 °C ( Continuous Running 24 Hours, 30 Days )
• Inner Dimension : Width 560 mm x Depth 950 mm x Height 850 mm (Working Area)
• SUS 310 Stainless steel plate interior
• Hi-grade insulating fire bricks interior backed up by ceramic fibre board & insulating brick
• Air tight single leaf manual swing door
• Forced convection heating system with :
  • Hot Air re-circulating system
  • Dual air flow from both (Left & Right) Side of oven chamber wall and upward throught the workpiece tray
• Equipped with Extra high temperature service centrifugal blower complete with turbo cooling fan blower
• Oven wall mounting type electrical control panel
• Microprocessor based digital indicating temperature controller
• Overheat protection system
• Industrial process thermocouple sensor
• Full proportional heating control by SCR Power Regulator (Very good linear control, high accuracy, fast response, able to keep steady temperature well and extend heater life)

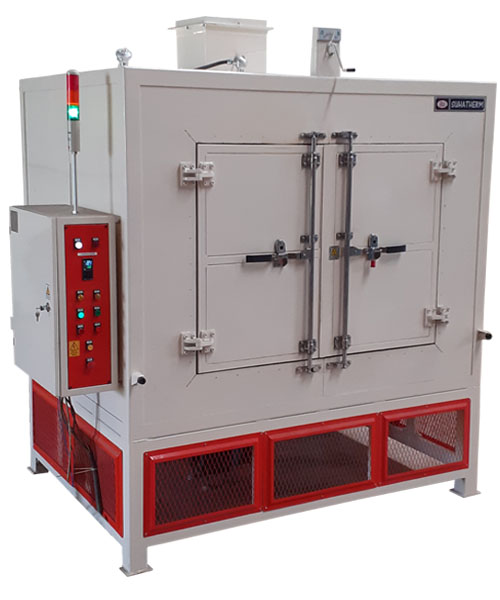

Our Anneal Oven Teflon Coating Furnace 800 °C (AOTCF-01) was designed for the heat treatment required for Teflon coating. This furnace satisfies requirements to quickly drop ambient temperature post-heating, achieved by forced cooling with a centrifugal blower.

Furnace Construction

• Maximum operating temperature up to 800°C
• Inner dimension: Width 1400 mm x Depth 1000 mm x Height 1000 mm (Vol. Approx. 1400 Ltr)
• Overall dimension: Approx. Width 2180/2530 mm x Depth 1790 mm x Height 2900 mm
• Hi-grade, lightweight insulating bricks backed up by ceramic fibre board & blanket
• Double-leaf manual swing door
• Exhaust Dumper: Manual adjustable swing dumper

Heating System

• Free radiating open coal spiral heaters, supported by hi-grade ceramic tubes located on the left, right, & bottom sides of the furnace wall
• Power: 51 KW
• Forced cooling with 3Ø 380V, 50Hz, 1.5 kW centrifugal blower

Electrical Features

• Furnace wall-mounted type electrical control panel
• Heating Power Drive: on/off control by magnetic contactor
• 2 x industrial process calibrated thermocouple type K with aluminium protection head & ceramic protection tube
• 2 x microprocessor-based digital indicating temperature controller

Safety

• 12 segments (6 heating steps) programmable digital indicating temperature controller
• Industrial process type K temperature sensor
• Full proportional control by SCR power regulator
• 6-channel paperless thermo recorder

Safety

• Overheat protection system

Warranty

• 1-year spare parts and services warranty (normal operation)

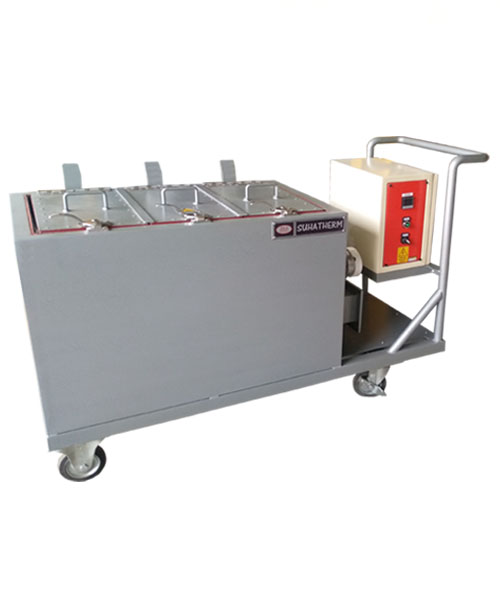

Our Pre-Heated Pack Wagon Furnace 320 °C (PH-PWF-01) was designed for the textile industry, specifically for pre-heating textile dies.

Furnace Construction

• Maximum temperature up to 320 °C, working operating temperature at 305 °C
• Outer Dimension: Width 620 mm x Length 1550 mm x Height 1000 mm
• Inner dimension:
  • Included shelf & heaters: Width 420 mm x Length 725 mm x Height 490 mm
  • Working space: Width 420 mm x length 725 mm x Height 230 mm
• 3 manual leaf swing-up doors sealed with a heat-resistant gasket
• Industrial rock wool insulation with heat-resistant paint

Heating System

• U form flanged heaters with 5 pcs x S/S SUS 304 heated tubular heater
• Total Power: 5 pcs x 0.7 KW = 3.5 KW, 220 V

Electrical Features

• Digital indicating temperature controller with PID control action
• Industrial process type K with stainless steel protection tube & aluminium protection head
• No fuse breaker (NFB) & magnetic contactor ex. Fuji

Safety

• Overheat protection system
• Pilot lamp

Warranty

• 1-year spare parts and services warranty (normal operation)

This aerospace furnace is designed for the tempering & bake-out process in the manufacturing process of engine components for Boeing 737-85P. This 1500 Ltr electric furnace is capable up to temperatures of 650 °C, and uses a proportional forced convection heating system with SCR power regulator (thyristor) to enable excellent temperature uniformity up to required AMS2750E pyrometry standard.

• Designed & manufactured for tempering & baking process for aerospace engines
• Maximum operating temperature up to 650 °C
• Inner dimension : L. 1200 mm x W. 1500 mm x H. 825 mm
• High-insulation with insulating brick coupled with ceramic fiber board & blanket.
• Electric heating-based forced convection with :
  • Hot air re-circulating system
  • Combination air flow
  • SCR power regulator (thyristor) for proportional heating control & extended heater durability
• Remote floor standing type electrical control panel
• Japanese temperature controller, progammable to 8 program pattern with 16 segments/pattern
  • 0.3% indication accuracy
• Paperless thermorecorder up to 12 point recordings
• Overheat protection system with electrical interlock, with other sound/visual indicators
• Calibrated thermocouple for temperature uniformity survey (TUS) to AMS2750E pyrometry standards.

*Spareparts & Services Warranty Available
*Terms & Conditions Apply
