Our Pre-Heated Pack Wagon Furnace 320 °C (PH-PWF-01) was designed for the textile industry, specifically for pre-heating textile dies.

Furnace Construction

• Maximum temperature up to 320 °C, working operating temperature at 305 °C
• Outer Dimension: Width 620 mm x Length 1550 mm x Height 1000 mm
• Inner dimension:
  • Included shelf & heaters: Width 420 mm x Length 725 mm x Height 490 mm
  • Working space: Width 420 mm x length 725 mm x Height 230 mm
• 3 manual leaf swing-up doors sealed with a heat-resistant gasket
• Industrial rock wool insulation with heat-resistant paint

Heating System

• U form flanged heaters with 5 pcs x S/S SUS 304 heated tubular heater
• Total Power: 5 pcs x 0.7 KW = 3.5 KW, 220 V

Electrical Features

• Digital indicating temperature controller with PID control action
• Industrial process type K with stainless steel protection tube & aluminium protection head
• No fuse breaker (NFB) & magnetic contactor ex. Fuji

Safety

• Overheat protection system
• Pilot lamp

Warranty

• 1-year spare parts and services warranty (normal operation)

The SUHATHERM ACMF 480 1800 aluminum continuous melting furnace is designed with a 450 kg/hour melting rate, with a 1800 kg holding capacity.

Construction Details

• Melting rate: 450 kg/hour with holding capacity: 1800 Kg
• Mild steel outer shell finished by heat resistant paint
• Lining with aluminium non-wetting castable (hot face applications) backed up by multi-layer insulation material to ensure low heat loss & low power consumption
• Melting & holding chamber heat source by gas burner
• Steel structure automatic charging tower equipped with bucket elevator & electric charging hoist
• Automatic charging door actuated by gear motor or pneumatic cylinder
• Manual swing-type sledging & fluxing door
• Remote floor standing type electrical control panel
• PLC wired control circuit
• Microprocessor-based digital indicating temperature controller on melting exhaust, holding chamber & molten temperature control
• Overheat protection system
• Full protection system on charging & burner part
• Special industrial process thermocouple on melting exhaust, holding chamber & molten sensor
• Equipped with molten level detector
• Remote burning gas train

Optional Features

• Digital gas flow meter (optional)
• Manual or automatic tap-out unit actuated by pneumatic air cylinder (optional)
• Moveable charging bucket (optional)

Note:

The above specifications are for general reference only. For detailed technical specifications & custom-designed solutions, please contact cs@smindo.co.id.

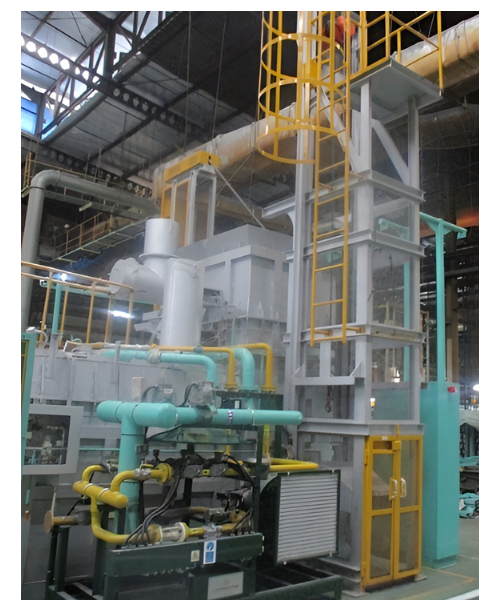

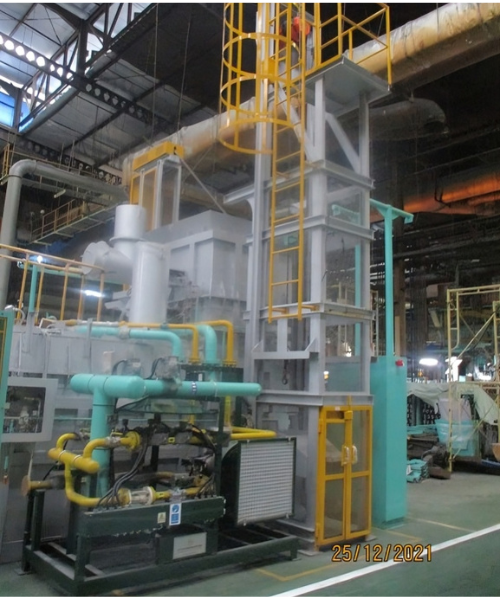

The SUHATHERM ACMF 700 2800 aluminum continuous melting furnace is designed with a 700 kg/hour melting rate, with a 2800 kg holding capacity.

Construction Details

• Melting rate: 700 kg/hour with holding capacity: 2800 Kg
• Mild steel outer shell finished by heat resistant paint
• Lining with aluminium non-melting castable (hot face applications) backed up by multi-layer insulation material to ensure low heat loss & low power consumption
• Melting & holding chamber heat source by gas burner
• Steel structure automatic charging tower equipped with bucket elevator & electric charging hoist
• Automatic charging door actuated by gear motor or pneumatic cylinder
• Manual swing-type sledging & fluxing door
• Remote floor standing type electrical control panel
• PLC wired control circuit
• Microprocessor-based digital indicating temperature controller on melting exhaust, holding chamber & molten temperature control
• Overheat protection system
• Full protection system on charging & burner part
• Special industrial process thermocouple on melting exhaust, holding chamber & molten sensor
• Equipped with molten level detector
• Remote burning gas train

Optional Features

• Digital gas flow meter (optional)
• Manual or automatic tap-out unit actuated by pneumatic air cylinder (optional)
• Moveable charging bucket (optional)

Note:

The above specifications are for general reference only. For detailed technical specifications & custom-designed solutions, please contact cs@smindo.co.id.

This aerospace furnace is designed for the tempering & bake-out process in the manufacturing process of engine components for Boeing 737-85P. This 1500 Ltr electric furnace is capable up to temperatures of 650 °C, and uses a proportional forced convection heating system with SCR power regulator (thyristor) to enable excellent temperature uniformity up to required AMS2750E pyrometry standard.

• Designed & manufactured for tempering & baking process for aerospace engines
• Maximum operating temperature up to 650 °C
• Inner dimension : L. 1200 mm x W. 1500 mm x H. 825 mm
• High-insulation with insulating brick coupled with ceramic fiber board & blanket.
• Electric heating-based forced convection with :
  • Hot air re-circulating system
  • Combination air flow
  • SCR power regulator (thyristor) for proportional heating control & extended heater durability
• Remote floor standing type electrical control panel
• Japanese temperature controller, progammable to 8 program pattern with 16 segments/pattern
  • 0.3% indication accuracy
• Paperless thermorecorder up to 12 point recordings
• Overheat protection system with electrical interlock, with other sound/visual indicators
• Calibrated thermocouple for temperature uniformity survey (TUS) to AMS2750E pyrometry standards.

*Spareparts & Services Warranty Available
*Terms & Conditions Apply

The SUHATHERM Laboratory Ashing furnace ASF-05/5 have been designed specifically for laboratory ashing process. Furnace features a manually adjustable inhaust & exhaust with dedicated airflow tunnel - allowing for the safe expulsion of volatile fumes and vapors generated during the ashing process, increasing safety & promoting ashing process.

This model is proudly Made in Indonesia.

• Max. Operating Temperature : 1200 °C
• Volume (Capacity)                 : ± 5 Litre
• Inner Dimension (approx.)   : W. 170 mm x D. 200 mm x H. 150 mm
• Outer Dimension (approx.)  : W, 490 mm x D. 530 mm x H. 635 mm
• Net Weight (approx.)            : ± 88 Kg (Furnace Only)
• Manually adjustable inhaust & exhaust damper complete with dedicated airflow tunnel to ensure expulsion of volatile vapors for ashing process
• Hi-grade insulating refractory interior backed up by ceramic fiber
• Single-leaf manual swing door secured by manual toggle clamp
• Heating Element:
  • Material    : Fe-Cr-Al Heating Alloy
  • Model       : Spiral wire in Grooves
  • Placed on the left, right & rear side of the furnace wall
• Heating power: 1 Phase, 220 VAC, 50-60 Hz, ± 3 kW
• Temperature Controller:
  • PID Control, Fuzzy PID control, self-tuning & auto-tuning control
  • Indication accuracy : ± 0.3%, ± 1 digit
  • Up to 64 heating steps and programmable to :
    • 1 Nos heating patterns with 64 heating steps/pattern
    • 2 Nos heating patterns with 32 heating steps/pattern
    • 4 Nos heating patterns with 16 heating steps/pattern
    • 8 Nos heating patterns with 8 heating steps/pattern
• Built-in furnace electrical control panel
• Industrial process thermocouple type K with ceramic protection tube & aluminium protection head Ex. SUHATHERM
• Pulse switching control by Solid State Relay (SSR)
  c/w Features:
  • Fast typical switching or cycle time (0.5 ~ 1 Sec)
  • Medium to high accuracy and response
  • No mechanic motion
  • No electrical noise

Notes:

1. ASF-05/5 Does Not Include Extended Duct to Roof
2. Please contact us at cs@smindo.co.id for detailed technical specifications and any other questions regarding SUHATHERM ASF-05/5. Our team would be happy to assist.

The SUHATHERM Large Muffle Furnace LBF-L/14 is engineered for laboratory and research applications that demand a spacious furnace chamber. This series is distinguished by its generous internal volume combined with a compact overall footprint, while still delivering excellent temperature uniformity. The units are also equipped with advanced programmable temperature controller, supporting up to 64 heating steps.

This model is part of the SUHATHERM Laboratory Muffle Furnace Series (3 Ltr, 5 Ltr, 7 Ltr, Large Size 14 Ltr).

This model is proudly Made in Indonesia.

• Max. Operating Temperature : 1200 °C
• Volume (Capacity)                 : ± 14 Litre
• Inner Dimension (approx.)  : W. 330 mm x D. 250 mm x H. 180 mm
• Outer Dimension (approx.) : W. 650 mm x D. 620 mm x H. 680 mm
• Hi-Grade Insulating Refractory Interior Backed up by Ceramic Fiber
• Manually Adjustable Exhaust Damper
• Single-leaf Manual Swing Door Secured by Manual Toggle Clamp
• Heating Element:
  • Material    : Fe-Cr-Al Heating Alloy
  • Model       : Spiral Wire in Grooves
  • Placed on the Left, Right, & Rear Side of Furnace Wall
• Heating power: 1 Phase, 220 VAC, 50-60 Hz, ± 5 kW
• Thermocontroller :
  • PID Control, Fuzzy PID control, Self-tuning, & Auto-tuning Control
  • Indication Accuracy : ± 0.3%, ± 1 digit
  • Up to 64 heating steps and programmable to :
    • 1 Nos heating patterns with 64 heating steps/pattern
    • 2 Nos heating patterns with 32 heating steps/pattern
    • 4 Nos heating patterns with 16 heating steps/pattern
    • 8 Nos heating patterns with 8 heating steps/pattern
• Built-in Furnace Body Mounted Control Panel
• Industrial Process Thermocouple Type K with Ceramic Protection Tube & Aluminum Protection Head Ex. SUHATHERM
• Pulse Switching Control by Solid State Relay (SSR)
  c/w Features:
  • Fast typical switching or cycle time (0.5 ~ 1 Sec)
  • Medium to high accuracy and response
  • No mechanic motion
  • No electrical noise

Notes:

Please contact us at cs@smindo.co.id for detailed technical specifications and any other questions regarding SUHATHERM LBF-L/14. Our team would be happy to assist.

The SUHATHERM Zinc Titling Melting Furnace (ZNMF-T-750-1500) is a tilting furnace with a 750 kg/hr zinc melting rate and 1500 kg molten holding capacity.

Furnace Construction

• Melting rate: 750 Kg/Hour, Holding Rate: 1500 Kg
  • Automatic tilting by hydraulic cylinder
• Furnace dimension (Approx.): W. 2050 mm x D.2050 mm x H.1550 mm
• Silicon carbide crucible
• High-alumina castbale backed-up by multi-layer insulation material
• Chamber heat source by electric heater element
• Remote floor standing type electrical control panel
• Overheat protection system
• Microprocessor based PID digital indicating temperature controllers
• Full proportional heating control by SCR power regulator c/w features;
  • PWM system for very good linear control
  • High accuracy and fast response
  • Able to keep steady temperature very well
  • Extends heater life
• (Optional) 4-channel paperless thermorecorder, PLC-HMI touchscreen operating system

Note:

The above specifications are for general reference only. For detailed technical specifications & custom-designed solutions, please contact cs@smindo.co.id.
