• Designed & manufactured for heat shrinking process
• Overall dimension : Width 800 mm x Length 1465 mm x Height 1700 mm
• Operating temperature up to 150°C max
• SUS 304 Stainless Steel interior
• State conveyor belt
• Hot air blow from top side by gun heater
• Motorized conveyor belt with adjustable belt speed control
• Oven wall mounting type electrical control panel
• Microprocessor based digital indicating temperature controller
• Overheat protection system
• Industrial process thermocouple sensor
• On / off heating control (Optional: Full proportional heating control)

Spare Parts Warranty : 1 Year (Normal Operation)

• Designed & manufactured for heat shrinking process
• Maximum operating temperature up to 130°C
• Inner dimension : Width 400 mm x Length 4000 mm x Height 400 mm
• Mild steel plate interior with painting finished by heat resistant paint
• Heat resistance flat conveyor belt
• Direct heating system by tubular heater with agitating fan
• Dual heating zone
• Motorized conveyor belt with adjustable belt speed control
• Remote floor standing type electrical control panel
• Microprocessor based digital indicating temperature controller
• Overheat protection system
• Industrial process thermocouple sensor
• Pulse heating control by Solid State Relay ( SSR ) (Optional: Full proportional heating control)

Spare Parts Warranty : 1 Year (Normal Operation)

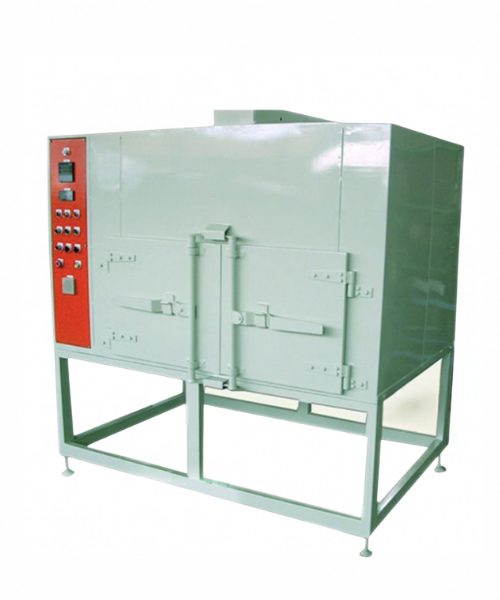

• Designed & manufactured for drying coating of eyeglass lenses
• Maximum operating temperature up to 100°C
• Inner dimension  : Width 1100 mm x Depth 1100 mm x Height 500 mm
• SUS 304 Stainless Steel plate interior
• Double leaf air tight swing doors
• Forced convection with :
  • Hot air re-circulating system
  • Horizontal air flow, side to side blowing direction
• Built-in oven electrical control panel
• Microprocessor based digital indicating temperature controller
• Overheat protection system
• Digital timing system for soaking / holding process
• Industrial process RTD PT100 temperature sensor
• On/off heating control (optional: Full proportional heating control).

Spare Parts Warranty : 1 Year (Normal Operation)

• Designed & manufactured for heat treatment automotive parts
• Maximum operating temperature up to 150°C
• Inner dimension  : Width 650 mm x Depth 650 mm x Height 600 mm
• SUS 304 Stainless Steel plate interior
• Single leaf air tight swing doors
• Forced convection with :
  • Hot air re-circulating system
  • Combination air flow from both side oven wall return to top wall
• Remote floor standing type electrical control panel
• Microprocessor based digital indicating temperature controller
• Overheat protection system
• Digital timing system for soaking / holding process
• Industrial process RTD PT100 temperature sensor
• Full proportional heating control by SCR power regulator
• Custom work piece rack & rack carrier. (optional)

Spare Parts Warranty : 1 Year (Normal Operation)

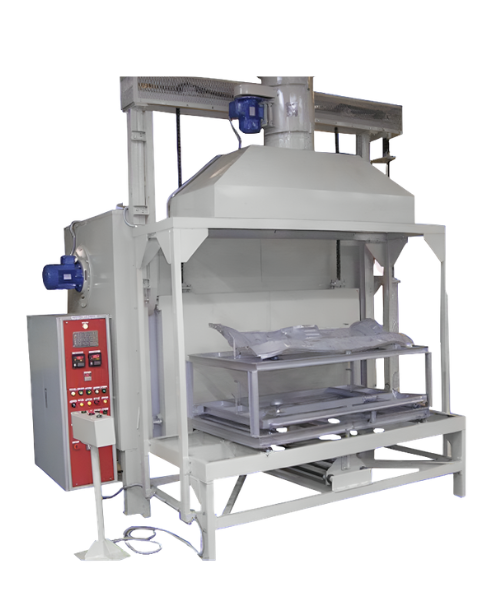

• Designed & manufactured for heat treating automotive dash panel
• Maximum operating temperature up to 280°C
• Inner dimension : Width 700 mm x Depth 1650 mm x Height 875 mm
• SUS 304 Stainless Steel interior
• Pneumatic lifting up door
• Pneumatic work piece sliding table (carrier)
• Manual adjustable air inlet and exhaust dumper
• Exhaust system ( Exhaust blower & exhaust hood ) at work piece loading & unloading side
• Forced convection with :
  • Hot air re-circulating system
  • Horizontal air flow, side to side blow direction
• Oven wall mounting type electrical control panel
• One touch operating system
• PLC ( Programmable Logic Control ) control circuit
• Microprocessor based digital indicating temperature controller
• Overheat protection system
• Digital timing system for soaking / holding process
• Industrial process thermocouple sensor
• On / off heating control with 6 Nos staging heating power (Optional: Full proportional heating control)

Spare Parts Warranty : 1 Year (Normal Operation)

• Tumbler cabinet oven
• Suitable for treating rubber parts
• Range operating temperature   40°C ~ 200°C
• Inner dimension : Width 1000 mm x Depth 800 mm x Height 800 mm
• Tumbler dimension : Dia 600 mm x Length 295 mm
• 3 Nos tumbler inside chamber, rotate by adjustable speed geared motor
• SUS 304 Stainless steel interior and tumbler material
• Single leaf airtight swing door
• Forced exhauster with automatic (motorized) inlet and exhaust dumper
• Forced convection with :
  • Hot air re-circulating system
  • Vertical air flow, heated air flow from top to bottom
  • 2 Nos circulation blower
• Electric door lock system
• Built-in oven type electrical control panel
• Microprocessor based digital indicating temperature controller
• Overheat protection system
• Digital timing system for soaking / holding process
• Industrial thermocouple sensor
• Heater Power Switching Control by SCR Power Regulator
• Paper chart thermo recorder (Optional: Paperless type thermo recorder)

Spare Parts Warranty : 1 Year (Normal Operation)

• Designed and manufactured for drying rubber parts
• Maximum operating temperature up to 300°C
• Inner dimension : Width 1600 mm x Depth 1630 mm x Height 1500 mm
• SUS 304 Stainless steel interior
• Air tight double leaf swing door
• Bomb shell blasting door
• Forced convection with :
  • Hot air re-circulating system
  • Horizontal air flow, side to side blowing direction
• Forced exhauster with inlet filter box and manual exhaust dumper
• Oven wall mounting type electrical control panel
• Microprocessor based digital indicating temperature controller
• Overheat protection system
• Digital timing system for soaking / holding process
• Industrial process thermocouple
• Full proportional heating control by SCR power regulator
• Paper chart thermo recorder (optional: paperless type thermo recorder)
• Custom tray & tray trolley (optional)

Spare Parts Warranty : 1 Year (Normal Operation)

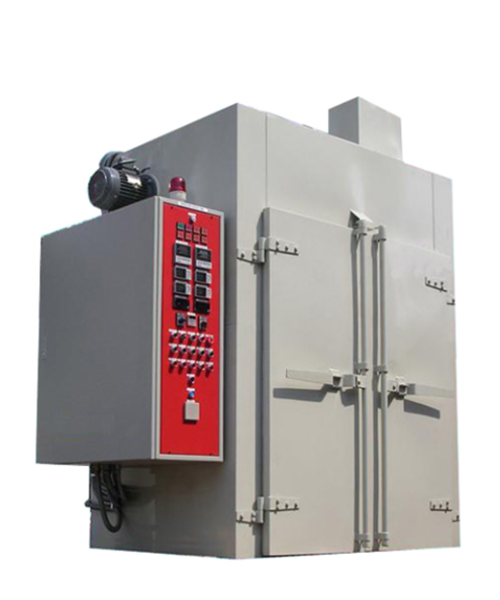

The SUHATHERM Walk-in Drying Oven (WIDO-05) is drying electromagnetic ballast with maximum operating temperature up to 150 °C. This oven features filtered air inhaust for clean air exchange inside oven chamber.

• Maximum operating temperature up to 150 °C
• Inner dimension : W. 1355 mm x D. 1120 mm x H. 1600 mm
• SUS 304 stainless steel interior
• Air tight double-leaf swing door
• Forced convection heating system with:
  • Electric heaters
  • Hot air re-circulating system
  • Horizontal air flow, side to side blowing direction
• Forced inhauster with inlet filter box and manual exhaust dumper for clean air circulation
• Oven wall-mounted type electrical control panel
• Microprocessor based PID digital indicating temperature controller
• Overheat protection system
• Digital timing system for soaking/holding process
• Industrial process thermocouple type K ex. SUHATHERM
• Full proportional heating control by SCR power regulator (thyristor) c/w features:
  • PWM system for very good linear control
  • High accuracy and fast response
  • Able to keep steady temperature very well
  • Extends heater life
• (Optional) 4-channel paperless thermorecorder, PLC-HMI touchscreen operating system
• (Optional) Custom-designed tray & trolley for user workpiece

Note:

The above specifications are for general reference only. For detailed technical specifications & custom-designed solutions, please contact cs@smindo.co.id.

• Designed and manufactured for drying electro motor
• Maximum operating temperature up to 200°C
• Inner dimension : Width 1350 mm x Depth 2000 mm x Height 1800 mm
• SUS 304 Stainless steel interior
• Air tight double leaf swing door
• Manual adjustable air inlet and exhaust dumper
• Forced convection with :
  • Hot air re-circulating system
  • Combination air flow, from both side oven wall return to top wall
• Oven wall mounting type electrical control panel
• Microprocessor based digital indicating temperature controller
• Overheat protection system
• Digital timing system for soaking / holding process
• Industrial process thermocouple
• On/off heating control (optional: Full proportional heating control)

Spare Parts Warranty : 1 Year (Normal Operation)
