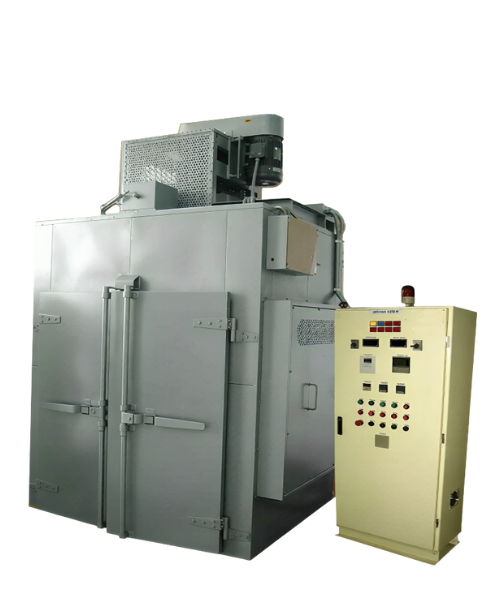

The SUHATHERM Walk-in Drying Oven (WIDO-07) is engineered for drying metal plating parts. The oven features pneumatically operated air inlet and exhaust damper, along with a PLC based one-touch operation system designed for operational ease-of-use.

• Maximum operating temperature up to 260 °C
• Inner dimension: W. 1300 mm x D. 1200 mm x H. 1510 mm
• SUS 304 stainless steel interior
• Air tight double leaf swing door
• Forced convection heating system with:
  • Electric heaters
  • Hot air re-circulating system
  • Combination air flow, from both side oven wall return to top wall
• Forced exhauster with pneumatically-actuated air inlet and exhaust damper
• Remote floor standing type electrical control panel
• One-touch operating system with PLC wired control circuit
• Microprocessor based PID digital indicating temperature controller
• Overheat protection system
• Digital timing system for soaking/holding process
• Industrial process thermocouple type K ex. SUHATHERM
• Full proportional heating control by SCR power regulator (thyristor) c/w features:
  • PWM system for very good linear control
  • High accuracy and fast response
  • Able to keep steady temperature very well
  • Extends heater life
• (Optional) 4-channel paperless thermorecorder, PLC-HMI touchscreen operating system
• (Optional) Custom-designed tray & trolley for user workpiece

Note:

The above specifications are for general reference only. For detailed technical specifications & custom-designed solutions, please contact cs@smindo.co.id.

• Maximum operating temperature up to 260°C
• Inner dimension : Width 1900 mm x Depth 1600 mm x Height 1600 mm
• Mild steel interior painting finished, by heat resistant paint
• Air tight double leaf swing door
• Manual adjustable air inlet and exhaust dumper
• Forced convection with :
  • Hot air re-circulating system
  • Combination air flow, from both side oven wall return to top wall
• Oven wall mounting electrical control panel
• Microprocessor based digital indicator temperature controller.
• Digital timing system for soaking / holding process
• Industrial process thermocouple
• Overheat protection system
• On/off heating control by magnetic contactor
• Custom tray, tray trolley & transfer dolly (optional)

Spare Parts Warranty : 1 Year (Normal Operation)

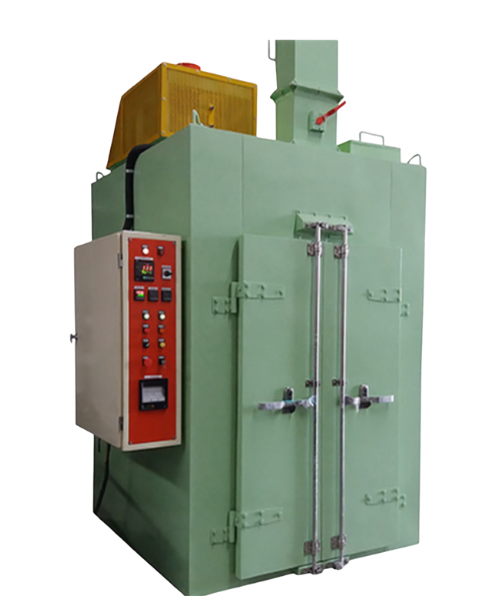

The SUHATHERM Walk-in Drying & Curing Oven (WIDCO) is engineered for rubber drying and rubber curing process.

• Maximum operating temperature up to 300 °C
• Inner dimension: W. 1000 mm x D. 1500 mm x H. 1600 mm
• SUS 304 stainless steel interior
• Air tight double-leaf swing door
• Forced convection heating system with:
  • Electric heaters
  • Hot air re-circulating system
  • Horizontal air flow, side to side blowing direction
• Manually adjustable air inlet & exhaust dumper
• Oven wall-mounted type electrical control panel
• Microprocessor based PID digital indicating temperature controller
• Overheat protection system
• Digital timing system for drying & curing process
• Industrial process thermocouple type K ex. SUHATHERM
• Full proportional heating control by SCR power regulator (thyristor) c/w features:
  • PWM system for very good linear control
  • High accuracy and fast response
  • Able to keep steady temperature very well
  • Extends heater life
• (Optional) 4-channel paperless thermorecorder, PLC-HMI touchscreen operating system
• (Optional) Custom-designed tray & trolley for user workpiece

Note:

The above specifications are for general reference only. For detailed technical specifications & custom-designed solutions, please contact cs@smindo.co.id

The SUHATHERM Walk-In Postcure Oven (WIPO) is engineered specifically for the drying and secondary curing (post curing) of rubber components. Designed to operate at temperatures up to 300 °C, it incorporates a forced fresh air intake system equipped with a G4-grade filter, ensuring a continuous supply of clean air into the chamber. This feature effectively minimizes residual rubber odors during processing.

• Designed and manufactured for drying postcure rubber parts
• Maximum operating temperature up to 300 °C
• Inner dimension : W. 1080 mm x D. 1030 mm x H. 1230 mm (Approx. 1360 Ltr)
• Full SUS 304 stainless steel construction
• Air tight double-leaf swing door
• Bomb-shell blasting door with interlock in case of overpressure
• Forced convection heating system with:
  • Electric heaters
  • Hot air re-circulating system
  • Horizontal air flow, side to side blowing direction
• Forced inhauster with G4 inlet filter box and manual exhaust damper
• Oven wall-mounted type electrical control panel
• Microprocessor based digital indicating temperature controller
• Overheat protection system
• Digital timing system for soaking/holding process
• Industrial process thermocouple type K ex. SUHATHERM
• Full proportional heating control by SCR power regulator (thyristor)
  c/w Features:
  • PWM system for very good linear control
  • High accuracy and fast response
  • Able to keep steady temperature very well
  • Extends heater life
• (Optional) 4-channel paperless thermorecorder, PLC-HMI touchscreen operating system
• (Optional) Custom-designed tray & trolley for user workpiece

Note:

The above specifications are for general reference only. For detailed technical specifications & custom-designed solutions, please contact cs@smindo.co.id.

• Designed and manufactured for aging metal plating parts
• Maximum operating temperature up to 300°C
• Inner dimension : Width 1300 mm x Depth 2300 mm x Height 1510 mm
• SUS 304 Stainless steel interior
• Entrance and exit air tight double leaf swing door
• Forced convection with :
  • Hot air re-circulating system
  • Combination air flow, from both side oven wall return to top wall
  • Dual zone heating control
• Forced exhauster with automatic (pneumatic) air inlet and exhaust dumper
• Remote floor standing type electrical control panel
• One touch operating system
• PLC (Programmable Logic Controllers) control circuit
• Microprocessor based digital indicating temperature controller
• Overheat protection system
• Digital timing system for soaking / holding process
• Industrial process thermocouple
• Full proportional heating control by SCR power regulator
• Paper chart thermo recorder (Optional: paperless type thermo recorder)

Spare Parts Warranty : 1 Year (Normal Operation)

• Designed and manufactured for normalizing aeroplane metal parts
• Maximum operating temperature up to 260°C
• Inner dimension : Width 1300 mm x Depth 2300 mm x Height 1510 mm
• SUS 304 Stainless steel interior
• Air tight double leaf swing door
• Forced convection with :
  • Hot air re-circulating system
  • Combination air flow, from both side oven wall return to top wall
  • Dual zone heating control
• Forced exhauster with automatic (pneumatic) air inlet and exhaust dumper
• Remote floor standing type electrical control panel
• One touch operating system
• PLC (Programmable Logic Controllers) control circuit
• Microprocessor based digital indicating temperature controller
• Overheat protection system
• Digital timing system for soaking / holding process
• Industrial process thermocouple
• Full proportional heating control by SCR power regulator
• Paperless thermo recorder
• Custom workpiece trolley (optional)

Spare Parts Warranty : 1 Year (Normal Operation)

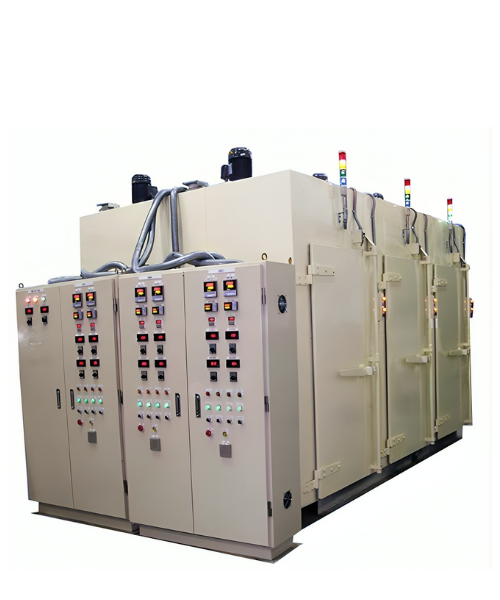

The SUHATHERM Multi Chamber Walk-in Annealing Oven (MC-WIAO) uniquely features a distinctive design that integrates 3 independently controlled chambers within a single oven construction. This configuration allows separate annealing processes to run simultaneously while supporting high production capacity, all within a compact footprint.

• Maximum operating temperature up to 260°C
• Inner dimension per chamber: W. 900 mm x D. 2200 mm x H.1710 mm
• SUS 304 stainless steel interior
• Manual adjustable air inlet and exhaust dampers
• Air-tight single leaf swing door
• Forced convection heating system with:
  • Electric heaters
  • Hot air re-circulating system
  • Combination air flow, from both side oven wall return to top wall
  • Dual zone heating control on each chamber for enhanced temperature uniformity for complex or irregularly shaped workpieces.
• Remote floor standing type electrical control panel
• Microprocessor based PID digital indicating temperature controller
• Overheat protection system
• Digital timing system for soaking/holding process
• Industrial process thermocouple K ex. SUHATHERM
• Full proportional heating control by SCR power regulator (thyristor) c/w features:
  • PWM system for very good linear control
  • High accuracy and fast response
  • Able to keep steady temperature very well
  • Extends heater life
• (Optional) 4-channel paperless thermorecorder, PLC-HMI touchscreen operating system
• (Optional) Custom-designed tray & trolley for user workpiece

Note:

The above specifications are for general reference only. For detailed technical specifications & custom-designed solutions, please contact cs@smindo.co.id.

• Designed and manufactured for drying automotive plastic parts
• Maximum operating temperature up to 150°C
• Inner dimension : Width 5400 mm x Depth 4800 mm x Height 3500 mm
• Mild steel interior & exterior
• Air tight double leaf swing door
• Automatic (pneumatic) air inlet and exhaust dumper
• Forced convection with :
  • Hot air re-circulating system
  • Combination air flow, from both side oven wall return to top wall
  • Dual zone heating control with one master temperature controller
• Remote floor standing type electrical control panel
• Microprocessor based digital indicating temperature controller
• Overheat protection system
• Digital timing system for soaking / holding process
• Industrial process thermocouple
• Full proportional heating control by SCR power regulator
• Custom workpiece trolley (optional)

Spare Parts Warranty : 1 Year (Normal Operation)

Our burner source, walk-in baking oven (BS-WIBO), also known as electrode baking oven is designed for the electrode baking process. This oven, equipped with burner-type heating source is abe to reach a temperature of 500 °C, and is equippe with 9 programmable heating patterns, each with 20 heating segments. This advanced design is suitable for stainless steel electrodes, or other applications needing a very high quality baking process.

• Designed and manufactured for baking welding electrode parts
• Burner type heating source
• Range operating temperature  60 °C ~ 450 °C, Max : 500 °C
• Inner dimension : Width 1830 mm x Depth 5000 mm x Height 2000 mm
• Mild steel exterior & interior
• Entrance and exit air tight motorized vertical liftting door
• Forced convection with :
  • Hot air re-circulating system
  • Combination air flow, from both side oven wall return to top wall
  • Four zone heating control with one master thermo controller
  • Multi step heating patterns with 9 patterns, 20 segments on each by programmable temperature controller
• Forced exchauster with automatic (pneumatic) air inlet and exhaust dumper
• Remote floor standing type electrical control panel
• Programmable digital indicating temperature controller
• Overheat protection system
• Burner firing safety system
• Industrial process thermocouple
• Full proportional burner firing control by modutrol
• 9 (Nine) channel paperless thermo recorder (Optional)

*Spareparts and services warranty available
