• Designed & manufactured for stress relieving automotive parts
• Gas burner heating source
• Maximum operating temperature up to 500°C
• Overall dimension : Width 2820 mm x Length 6450 mm x Height 3110 mm
• SUS 304 Stainless Steel interior
• Forced convection with :
  • Hot air re-circulating system
  • Vertical air flow, from top return to top wall via both side oven wall
• Exhaust hood with exhaust blower at heating chamber entrance side
• Air curtain blower at heating chamber outlet side
• Force exhauster with large exhaust blower at cooling section before unloading side
• Custom conveyor belt (Heat resistant V box conveyor belt)
• Motorized conveyor belt with adjustable speed control
• Remote floor standing type electrical control panel
• Microprocessor based digital indicating temperature controller
• Industrial process thermocouple sensor
• Overheat protection system
• Full protection system on burner part, conveyor belt & cooling section part
• Full proportional heating control by modutrol
• 6 channel paper chart thermo recorder

Spare Parts Warranty : 1 Year (Normal Operation)

This up to 400 °C industrial oven without nitrogen purging system (EO-01) was manufactured for the embrittlement process of aeroplane parts without inert environment. This oven is engineered to conform to AMS2750 E class 2 pyrometry standards.

• Maximum operating temperature up to 400 °C
• AMS 2750 E class 2 Standard (Uniformity: ± 6 °C)
• Inner dimension: Width 700 mm x Depth 600 mm x Height 700 mm
• SUS 304 Stainless Steel plate interior
• Airtight single leaf manual swing door
• Forced convection with:
  • Hot air re-circulating system
• Forced exhauster with automatic (motorized) fresh-air inlet and exhaust dumper
• Digital indicating AMS2750E compliant PID temperature controller c/w SCR control
• System Accuracy Test (SAT) & Temperature Uniformity Survey (TUS) Port Installed.
• Equipped with overheat protection system
• Industrial metal sheathed thermocouple type N completed with UKAS calibration certificate

Optional

• 6-channel AMS2750 compliant data logger (paperless temperature recorder)
• HMI touchscreen (PLC) control system
• (Optional) Nitrogen gas purging system
  • Refer to EO-02 Embrittlement Oven for oven with nitrogen purging system

*1-year warranty*
*terms & conditions apply

Please contact us at cs@smindo.co.id to learn more about this oven.

This up to 400 °C industrial oven with nitrogen purging system (EO-02) was manufactured for the embrittlement process of aeroplane parts a purged (with nitrogen gas) environment. This oven is engineered to conform to AMS2750 E class 2 pyrometry standards.

• Maximum operating temperature up to 400 °C
• AMS 2750 E Class 2 Standard (Uniformity: ± 6 °C)
• Inner dimension: Width 700 mm x Depth 600 mm x Height 700 mm
• SUS 304 Stainless Steel plate interior
• Airtight single leaf manual swing door
• Forced convection with:
  • Hot air re-circulating system
• Forced exhauster with automatic (motorized) fresh-air inlet and exhaust dumper
• (Optional) Installed with nitrogen gas purging system
• Digital indicating AMS2750E compliant PID temperature controller c/w SCR control
• System Accuracy Test (SAT) & Temperature Uniformity Survey (TUS) Port Installed.
• Equipped with overheat protection system
• Industrial metal sheathed thermocouple type N completed with UKAS calibration certificate

Optional

• 6-channel AMS2750 compliant data logger (paperless temperature recorder)
• HMI touchscreen (PLC) control system
• (Optional) Nitrogen purging system
  • Refer to EO-01 Embrittlement Oven for oven without purging system

*1-year warranty*
*terms & conditions apply

Please contact us at cs@smindo.co.id to learn more about this oven.

The SUHATHERM Bench Oven BO-05/125 is a versatile, multipurpose forced convection high-temperature oven. This oven features maximum operating temperature up to 500 °C with full proportional heating control for better heater control and extended durability.

This oven is available in 125 & 216 ltr (BO-05/125 & BO-05/216) sizings, and features an optional paperless temperature recorder.

• Maximum operating temperature up to 500 °C
• Inner dimension: W. 500 x D. 500 x H. 500 mm (125 ltr)
• SUS 304 stainless steel interior
• Mild steel exterior finished by Jotun Protective paint
• Air tight single-leaf manual swing door
• Manual adjustable air inlet and exhaust damper
• Temperature uniformity survey (TUS) port appended on oven body for independent temperature monitoring
• Oven wall-mounted type electrical control panel
• Forced convection heating system with:
  • Electric heaters
  • Hot air re-circulating heating system
  • Horizontal flow and side to side blowing direction
• Industrial process thermocouple type K ex. SUHATHERM
• Overheat protection system
• Microprocessor based PID digital indicating temperature controller
  • Programmable up to 64 heating steps
  • Digital display screen for set point (SV) and actual (PV) temperature
• Digital timing system for soaking/holding process
• Full proportional heating control by SCR power regulator (thyristor)
• Included 5 Nos SUS 304 workpiece trays
• (Optional) 4-channel paperless temperature recorder

Notes:

The above specifications are for general reference only. For detailed technical specifications & custom-designed solutions, please contact cs@smindo.co.id.

• Designed & Manufactured for Oven Storage of Automotive production parts
• Maximum operating temperature up to 360 °C (Working Temperature : 300 °C )
• Inner Dimension : WIdth 850 mm x Depth 600 mm x Height 750 mm
• SUS 304 Stainless Steel interior
• Air tight single leaf manual swing door
• Forced convection heating system with :
  • Hot air re-circulating system
  • Horizontal blow, side to side blowing direction
• Manual adjustable sliding dumper
• Oven wall mounting type electrical control panel
• Microprocessor based digital indicating temperature controller
• Overheat protection system
• Industrial process thermocouple sensor
• Full proportional heating control by SCR Power Regulator (Very good linear control, high accuracy, fast response, able to keep steady temperature well and extend heater life)

• Designed & Manufactured for Cartridge Filter Drying Process
• Maximum Operating temperature up to 90 ºC
• Inner dimension : Width 3000 mm x Depth 1000 mm x Height 1600 mm
• Mild steel plate interior & exterior
• Air tight double leaf manual swing door
• Forced convection system with :
  • Hot air re-circulating system
  • Horizontal air flow from side to side blowing direction
  • Single zone heating control with steam heating radiator source
• Oven wall mounting type electrical control panel
• Mircoprocessor based digital indicating temperature controller
• Overheat protection system
• Digital timing system for soaking / holding process
• Industrial process thermocouple sensor
• Equipped with pulse steam heating control
• Equipped with automatic door switch (safety interlock  circuit)

The SUHATHERM Top Loading Oven (TLO-05) features a pneumatic-actuated top loading, with a maximum operating temperature up to 315 °C. This oven is suitable for oil & gas drill head heating process & equpiment qualification testing.

• Maximum operating Temperature up to 315 °C
• Inner dimension: W. 600 mm x D. 1100 mm x L. 4000 mm
• Temperature uniformity: ± 6 °C (measured under empty load condition)
• SUS 304 stainless steel interior
• Forced convection heating system with:
  • Electric heaters
  • Hot air re-circulating system
• Pneumatically-actuated swing up door, sealed by hi-temp door gasket
• Installed with 6 Nos access holes holes for inserting test pipe
• Manual adjustable fresh air inlet and exhaust dumper
• Installed with System Accuracy Test (SAT) & Temperature Uniformity Survey (TUS) ports for oven calibration
• Microprocessor based PID digital indicating temperature controller
  • (Optional) Re-transmission output PV (present value ) or SV (set value) communication
• Digital timing system for holding/soaking process
• Overheat protection system
• Full proportional heating control by SCR Power Regulator
• Industrial process thermocouple type K tex. SUHATHERM
• (Optional) 4-channel paperless thermorecorder, PLC-HMI touchscreen operating system

Note:

The above specifications are for general reference only. For detailed technical specifications & custom-designed solutions, please contact cs@smindo.co.id.

The SUHATHERM Cabinet Drying Oven CDO-01 is an aerospace-grade, AMS2750 compliant oven, with operating temperatures up to 300 °C. This forced convection oven is engineered for drying aeroplane metal parts, with electrical instruments and temperature uniformity compliant to AMS2750E standards.

PT Suhatherm Manufacturing Indonesia is capable of manufacturing industrial ovens in compliance with AMS2750 Class 1 uniformity standards, or according to any alternative specifications as required by the client.

• Used for drying aeroplane metal parts
• Working temperature: 260 °C (Max. temperature: 300 °C)
• Built to meet AMS2750 pyrometry requirements
• Inner dimension (Approx.) : W. 950 mm x D. 1100 mm x H.1500 mm
• SUS 304 stainless steel interior
• Mild steel exterior finished by Jotun protective paint
• Air tight single leaf manual operated swing door sealed by heat resistant gasket
• Forced convection heating system with:
  • Electric heaters
  • Hot air re-circulating system
• Manual fresh air inlet and exhaust outlet swing damper
• Oven wall-mounted type electrical control panel
• Microprocessor based PID digital indicating temperature controller compliant to AMS2750 requirements (accuracy: ±1.1 °C)
• Equipped with overheat protection system by chamber temperature limiter & heater overheat protector controller
• Industrial metal sheathed thermocouple type N complete with UKAS calibration certificate to AMS2750 standards
• Full proportional heating control by SCR power regulator
  c/w Features:
  • PWM system for very good linear control
  • High accuracy and fast response
  • Able to keep steady temperature very well
  • Extends heater life
• (Optional) 4-channel paperless thermorecorder, PLC-HMI touchscreen operating system
• (Optional) Custom-designed tray & trolley for user workpiece

Note:

The above specifications are for general reference only. For detailed technical specifications & custom-designed solutions, please contact cs@smindo.co.id.

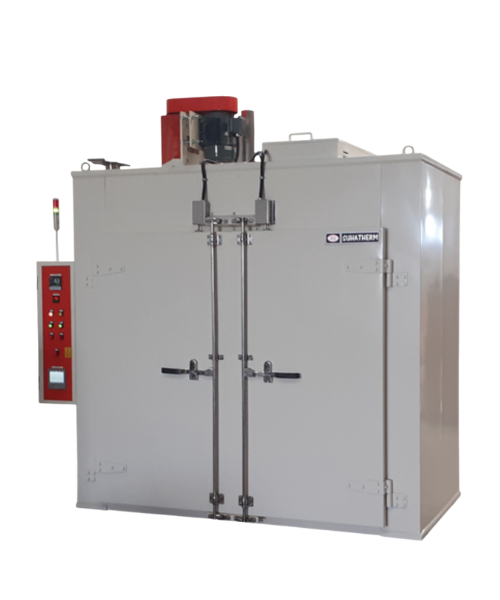

The SUHATHERM Walk-in Drying Oven (WIDO-04) is engineered for drying process of food & beverage products.

• Maximum operating temperature up to 250 °C
• Volume (capacity) : ± 3200 Litre
• Inner Dimension (approx.) : W. 1900 mm x D. 1000 mm x H.1700 mm
• SUS 304 stainless steel Interior
• Air tight double-leaf manual swing door
• Manual adjustable air inlet and exhaust damper
• Forced convection heating system with:
  • Electric heaters
  • Hot air re-circulating system
  • Horizontal air flow, side-to-side blowing direction return to upper ceiling
• Oven wall-mounted type electrical control panel
• Microprocessor based PID digital temperature controller
• Overheat temperature protection system
• Digital timing system for soaking/holding process
• Industrial process thermocouple type K ex. SUHATHERM
• Full proportional heating control by SCR power regulator (thyristor) c/w features:
  • PWM system for very good linear control
  • High accuracy and fast response
  • Able to keep steady temperature very well
  • Extends heater life
• (Optional) 4-channel paperless thermorecorder, PLC-HMI touchscreen operating system
• (Optional) Custom-designed tray & trolley for user material

Note:

The above specifications are for general reference only. For detailed technical specifications & custom-designed solutions, please contact cs@smindo.co.id.
