The SUHATHERM Bench Oven BO-03/21 is a multipurpose - heavy duty 21 ltr forced convection benchtop oven. This oven features maximum operating temperature of 300°C, with full proportional heating control for better heater control and extended durability.

This oven is available in 21 ltr & 53 ltr (BO-03/21 & BO-03/53) sizings, and features an optional paperless temperature recorder.

• Maximum operating temperature up to 300 °C
• Inner dimension: W. 350 mm x D. 200 mm x H. 300 mm (21 Ltr)
• Outer dimension (Approx.): W. 1280 mm x D. 580 mm x H. 800 mm
• SUS 304 stainless steel interior
• Mild steel exterior finished by protective paint
• Forced convection heating system with:
  • Electric heaters
  • Hot-air recirculating system
• Manually adjustable air inlet & exhaust outlet damper
• Microprocessor based PID digital indicating temperature controller c/w features:
  • Programmable up to 64 heating steps
  • Digital display screen for set point (SV) and actual (PV) temperature
• Overheat protection system
• Digital timing system for soaking/holding process
• Industrial process thermocouple type K ex. SUHATHERM
• Full proportional heating control by SCR power regulator (thyristor)
• (Optional) 4-channel paperless temperature recorder

Note:

The above specifications are for general reference only. For detailed technical specifications & custom-designed solutions, please contact cs@smindo.co.id.

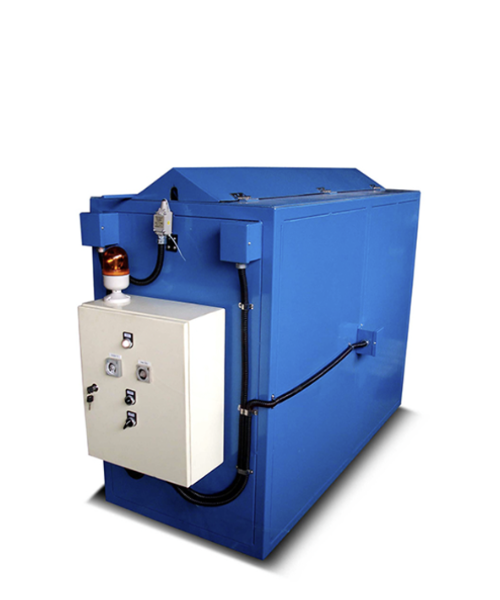

The SUHATHERM Top Loading Oven (TLO-01) is suitable for general drying process where overhead handling systems are used for workpiece loading.

• Suitable for drying process
• Maximum operating temperature up to 120°C
• Inner Dimension: W. 600 mm x D. 1600 mm x H. 1200 mm
• Mechanical convection heating system by radiant heaters.
• SUS 304 stainless steel interior
• Microprocessor based PID digital indicating temperature controller
• Overheat protection system
• Industrial process RTD PT100 temperature sensor
• (Optional) Full proportional heating control by SCR power regulator (thyristor)
• (Optional) Custom-designed tray & trolley for user workpiece

Note:

The above specifications are for general reference only. For detailed technical specifications & custom-designed solutions, please contact cs@smindo.co.id.

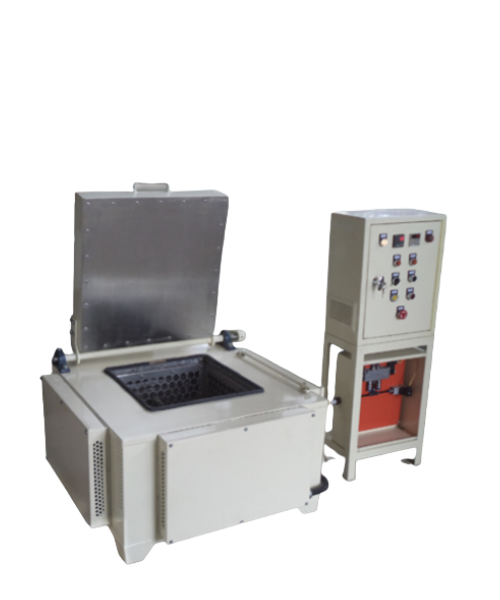

The SUHATHERM Top Loading Oven (TLO-02) is suitable for general heat processing where overhead handling systems are used for workpiece loading. This oven is equipped with pneumatic lifting-up door for easy operation.

• Suitable for heat processing up to 260 °C
• Inner dimension: W. 450 x D. 450 x H. 300 mm
• Mechanical convection heating system with 4 heating side
• SUS 304 stainless steel interior
• Auto swing up door actuated by pneumatic cylinder
• Remote floor standing type electrical control panel
• Microprocessor based PID digital indicating temperature controller
• Overheat protection system
• Digital timing system for soaking/holding process.
• Industrial process thermocouple type K ex. SUHATHERM
• On/off heating control
• (Optional) Full proportional heating control by SCR power regulator (thyristor)

Note:

The above specifications are for general reference only. For detailed technical specifications & custom-designed solutions, please contact cs@smindo.co.id.

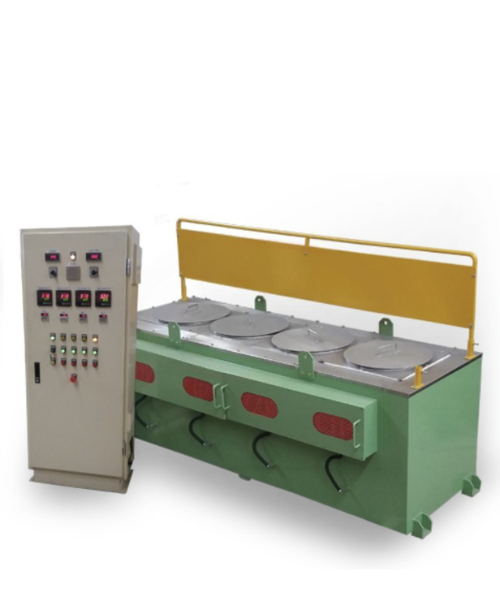

The SUHATHERM Top Loading Oven (TLO-03) features multiple (4 nos) individually controlled heating chamber in single body construction - allows for versatile production while maintaining a compact footprint.

• Suitable for heat processing up to 360 °C
• 4 number individual controled heating chamber
• Overall Dimension: W. 800 x D. 2400 x H. 825 mm
• SUS 304 stainless steel interior
• Separately controlled mechanical convection heating system on each chamber
• Microprocessor based PID digital indicating temperature controller on each chamber
• Overheat protection system
• Digital timing system for soaking/holding process.
• Industrial process thermocouple type K ex. SUHATHERM
• Full proportional heating control by SCR (thyristor) power regulator

Note:

The above specifications are for general reference only. For detailed technical specifications & custom-designed solutions, please contact cs@smindo.co.id.

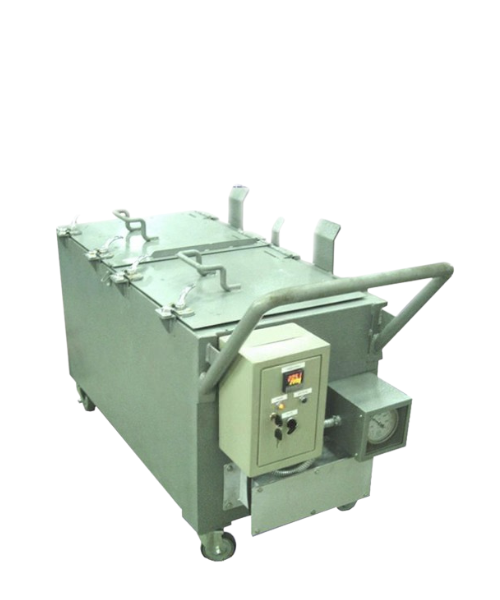

The SUHATHERM Top Loading Oven (TLO-04) is a compact, mobile operated top loading oven, suitable for drying process.

• Suitable for drying process up to 320 °C
• Inner dimension: W. 400 mm x D. 900 mm x H. 300 mm
• SUS 304 stainless steel interior
• 2 Nos airtight single leaf swing up door
• Mechanical convection heating system
• Angle type bimetallic thermometer gauge, range up to 500°C
• Microprocessor based PID digital indicating temperature controller
• Overheat protection system
• Digital timing system for soaking/holding process
• Industrial process thermocouple sensor ex. SUHATHERM
• On/Off heating control
• (Optional) Full proportional heating control by SCR power regulator (thyristor)

Note:

The above specifications are for general reference only. For detailed technical specifications & custom-designed solutions, please contact cs@smindo.co.id.

SUHATHERM Cabinet Oven (CO-01) combines a compact design with versatility, reaching operating temperatures up to 300?°C. Its forced convection and precise heating control make it suitable for a wide range of applications.

• Maximum operating temperature up to 300 ºC
• Inner dimension: W. 900 mm x D. 990 mm x H. 990 mm
• SUS 304 stainless steel interior
• Air tight single leaf swing door
• Manual adjustable air inlet and exhaust damper
• Force convection with:
  • Electric heaters
  • Hot air re-circulating system
• Built-in oven type electrical control panel
• Microprocessor based PID digital indicating temperature controller
• Overheat protection system
• Digital timing system for soaking/holding process
• Industrial process thermocouple type K ex. SUHATHERM
• Full proportional heating control by SCR power regulator (thyristor) c/w features:
  • PWM system for very good linear control
  • High accuracy and fast response
  • Able to keep steady temperature very well
  • Extends heater life
• (Optional) 4-channel paperless thermorecorder
• (Optional) Workpiece trays

Note:

The above specifications are for general reference only. For detailed technical specifications & custom-designed solutions, please contact cs@smindo.co.id.

The SUHATHERM Drying Oven (DCO-03-325) is designed for heavy-duty baking/drying of various items, might that be automotive components, laboratory samples, and/or coals/minerals. This oven comes with 5 Nos SUS 304 shelves (tray) as standard.

With its compact footprint, this forced convection oven is ideal for uses in tight spaces.

• Maximum operating temperature up to 300 °C
• Inner dimension (approx.): W. 600 mm x D. 600 mm x H. 900 mm (Approx. 325 Ltr)
• Outer dimension (approx.): W. 1420 mm x D. 965 mm x H. 1740 mm
• SUS 304 stainless steel interior
• Air tight single leaf manual swing door
• Manual adjustable air inlet and exhaust damper
• Forced convection heating system with:
  • Electric heaters
  • Hot air re-circulating system
• Oven wall mounting type electrical control panel
• Microprocessor based PID digital indicating temperature controller
• Overheat protection system
• Digital timing system for soaking/holding process
• Industrial process thermocouple type K ex. SUHATHERM
• Full proportional heating control by SCR Power Regulator
  c/w Features:
  • PWM system for very good linear control
  • High accuracy and fast response
  • Able to keep steady temperature very well
  • Extends heater life
• Included 5 Nos SUS 304 workpiece trays
• (Optional) 4-channel paperless temperature recorder

Notes:

The above specifications are for general reference only. For detailed technical specifications & custom-designed solutions, please contact cs@smindo.co.id.

The SUHATHERM Walk-in Drying Oven (WIDO-01) is engineered for general drying process of various components. Components may include automotive parts, plating parts, to food & beverages.

• Maximum operating temperature up to 200 °C
• Inner dimension: W. 1080 mm x D. 1000 mm x H. 1500 mm
• SUS 304 stainless steel interior
• Air tight double-leaf swing door
• Manual adjustable air inlet and exhaust dumper
• Forced convection heating system with:
  • Electric heaters
  • Hot air re-circulating system
  • Horizontal flow, side to side blowing direction
• Oven wall-mounted type electrical control panel
• Microprocessor based PID digital indicating temperature controller
• Overheat protection system
• Digital timing system for soaking/holding process
• Industrial process thermocouple type K ex. SUHATHERM
• Full proportional heating control by SCR power regulator (thyristor) c/w features:
  • PWM system for very good linear control
  • High accuracy and fast response
  • Able to keep steady temperature very well
  • Extends heater life
• (Optional) 4-channel paperless thermorecorder, PLC-HMI touchscreen operating system
• (Optional) Custom-designed tray & trolley for user workpiece

Note:

The above specifications are for general reference only. For detailed technical specifications & custom-designed solutions, please contact cs@smindo.co.id.

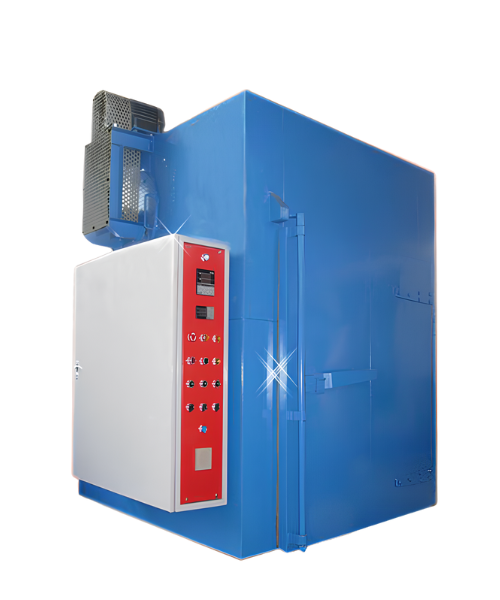

The SUHATHERM Walk-in Drying Oven (WIDO-02) is engineered for electromotor drying oven process after rewinding.

• Maximum operating temperature up to 300 °C
• Inner dimension : W. 1200 mm x D. 1500 mm x H. 1200 mm
  • Also available in W. 1350 mm x D. 2000 mm x H. 1800 mm or other custom-designed dimensions
• SUS 304 stainless steel interior
• Air tight double-leaf swing door
• Manual adjustable air inlet and exhaust dumper
• Forced convection heating system with:
  • Electric heaters
  • Hot air re-circulating system
  • Horizontal air flow, side to side blowing direction
• Oven wall-mounted type electrical control panel
• Microprocessor based PID digital indicating temperature controller
• Overheat protection system
• Digital timing system for soaking/holding process
• Industrial process thermocouple type K ex. SUHATHERM
• On/Off heating control
• (Optional) Full proportional heating control by SCR power regulator
• (Optional) 4-channel paperless thermorecorder, PLC-HMI touchscreen operating system

Note:

The above specifications are for general reference only. For detailed technical specifications & custom-designed solutions, please contact cs@smindo.co.id.
